| Power Required |
15-50 Hp |
| Minimum Tractor Weight |
1500 lbs |
| Bale Size （Diameter X Width） |
φ20 X 28 in |
| Bale Weight |
30 - 50 lbs |
| Overall (L x W x H) |
45 x 51 x 47 in |

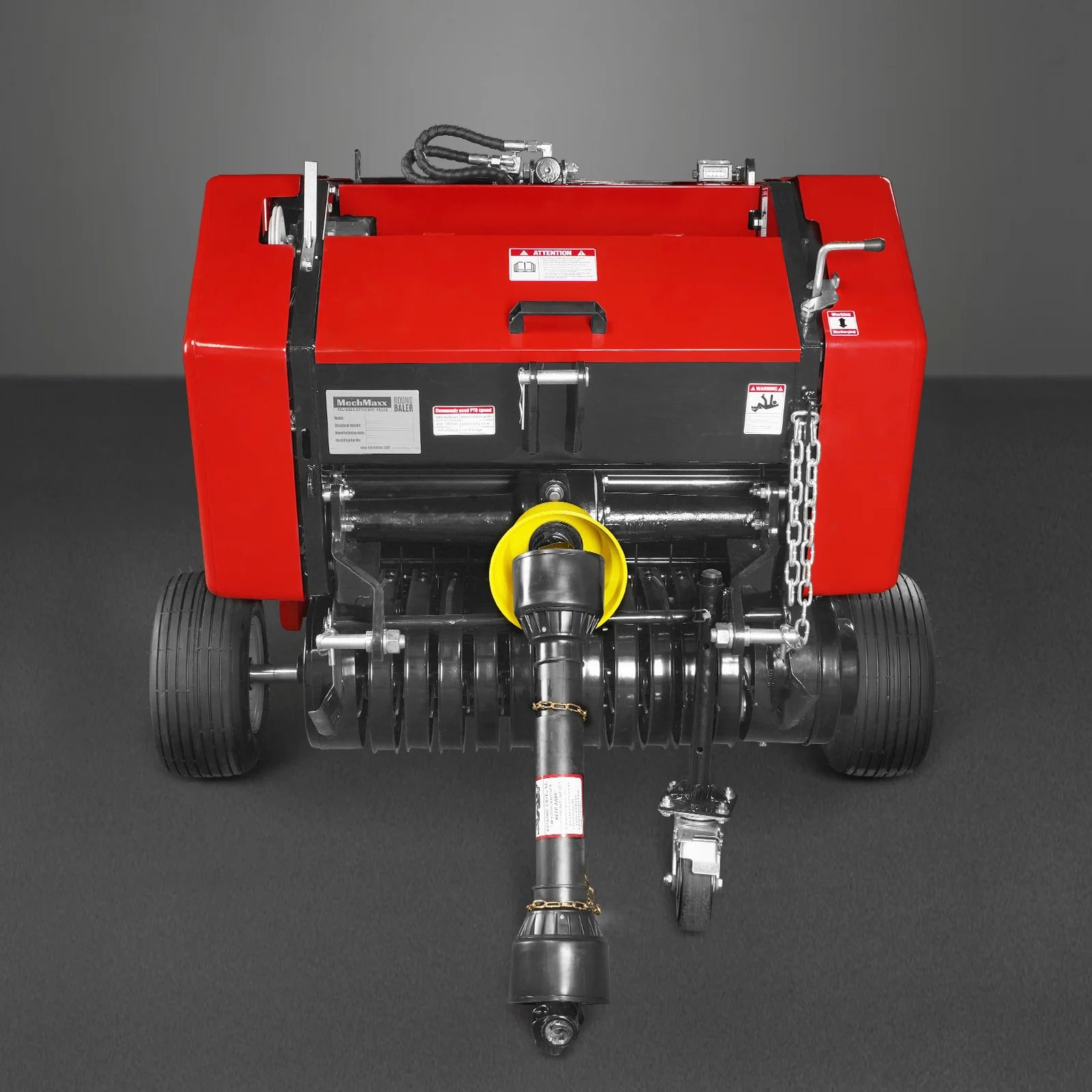

| Pickup Width |
31.5 in |
| Efficiency |
1.24-3.11 mi/h |
| Capacity |
80 - 100 Bales / Hour |

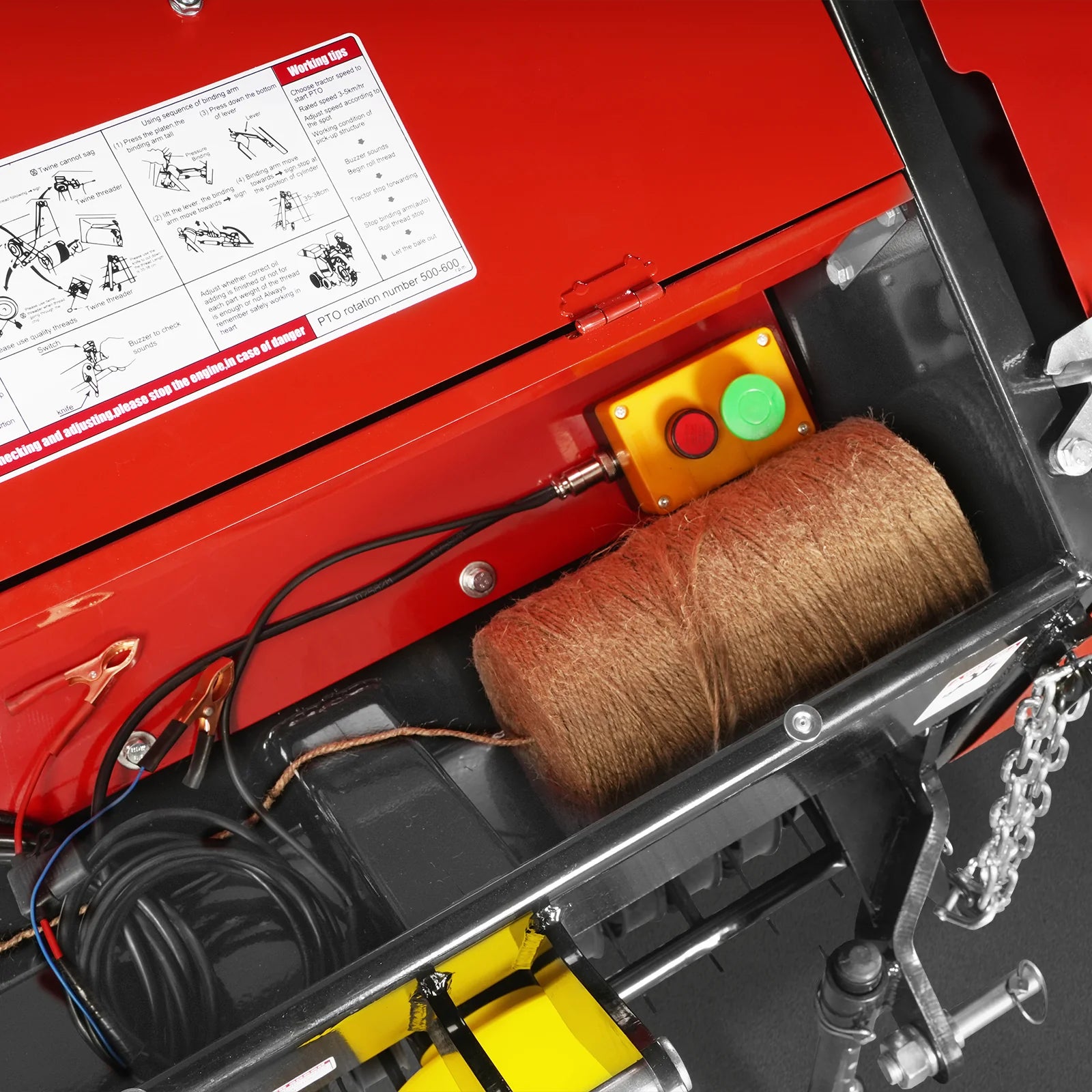

| Bale Wrapping |
Twine Wrap |

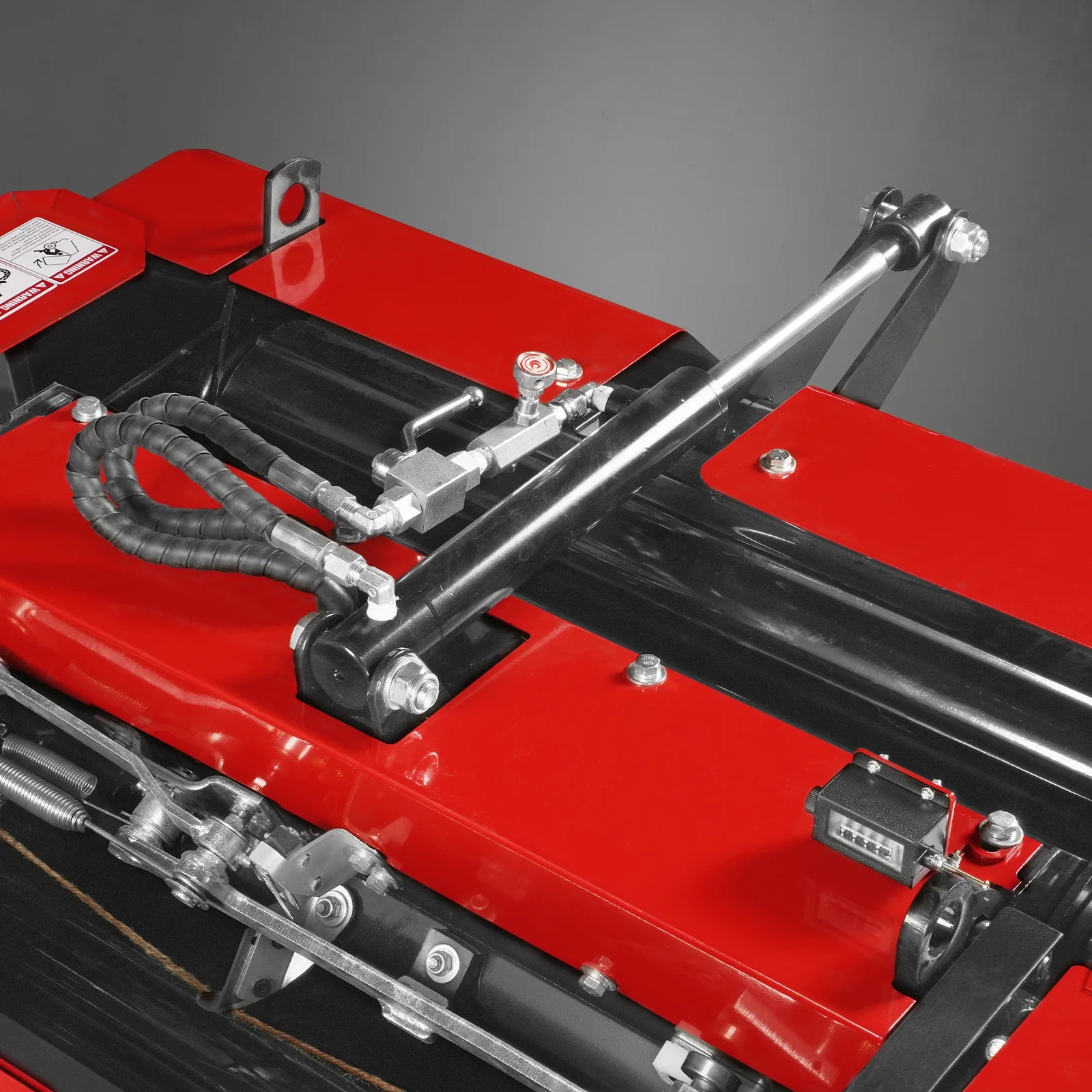

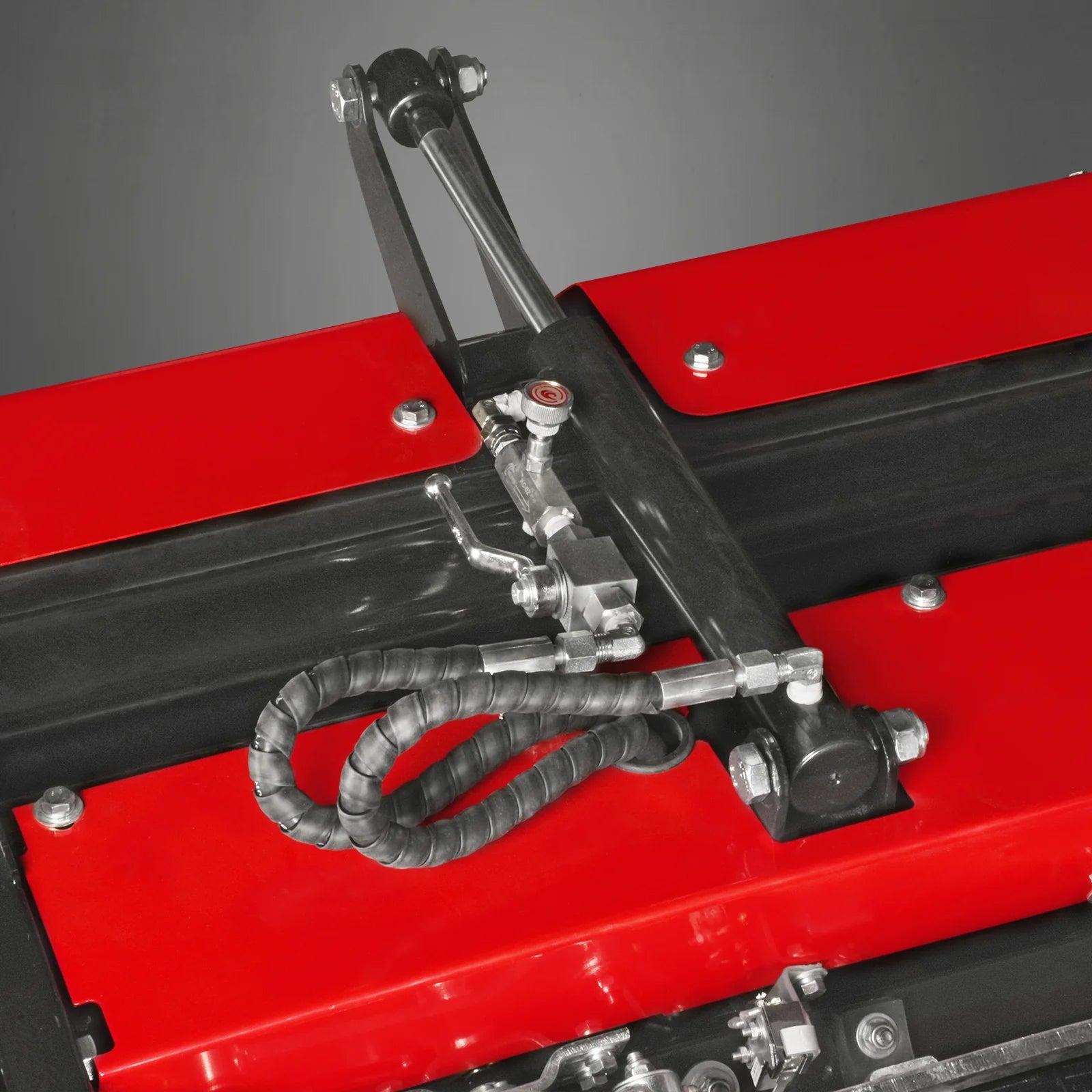

| Hydraulics |
Independent Hydraulic Power Unit, No Need Tractor Hydraulics |
| Electrical |
Aviation Plug, Easy To Connect With Tractor |
| Ropes Needed For Per Bale |
62-95ft |
| Tire Size |
16 x 6.5 in |
| PTO Shaft Speed |
540 rpm |
| Driveline Shaft Length |
T4-LF-27.5
|
| Spline End |
1.375in Z6 |
| 3-Point Hitch |
CAT 1 |
| Gearbox Oil Type |
80W90 EP Gear Oil |
| Finish |
Powder Coating |
| Warranty |
1 Year |
| Shipping Box |
47 x 45 x 47 in |
| Weight (N.W./G.W.) |
970 /992 lbs |
