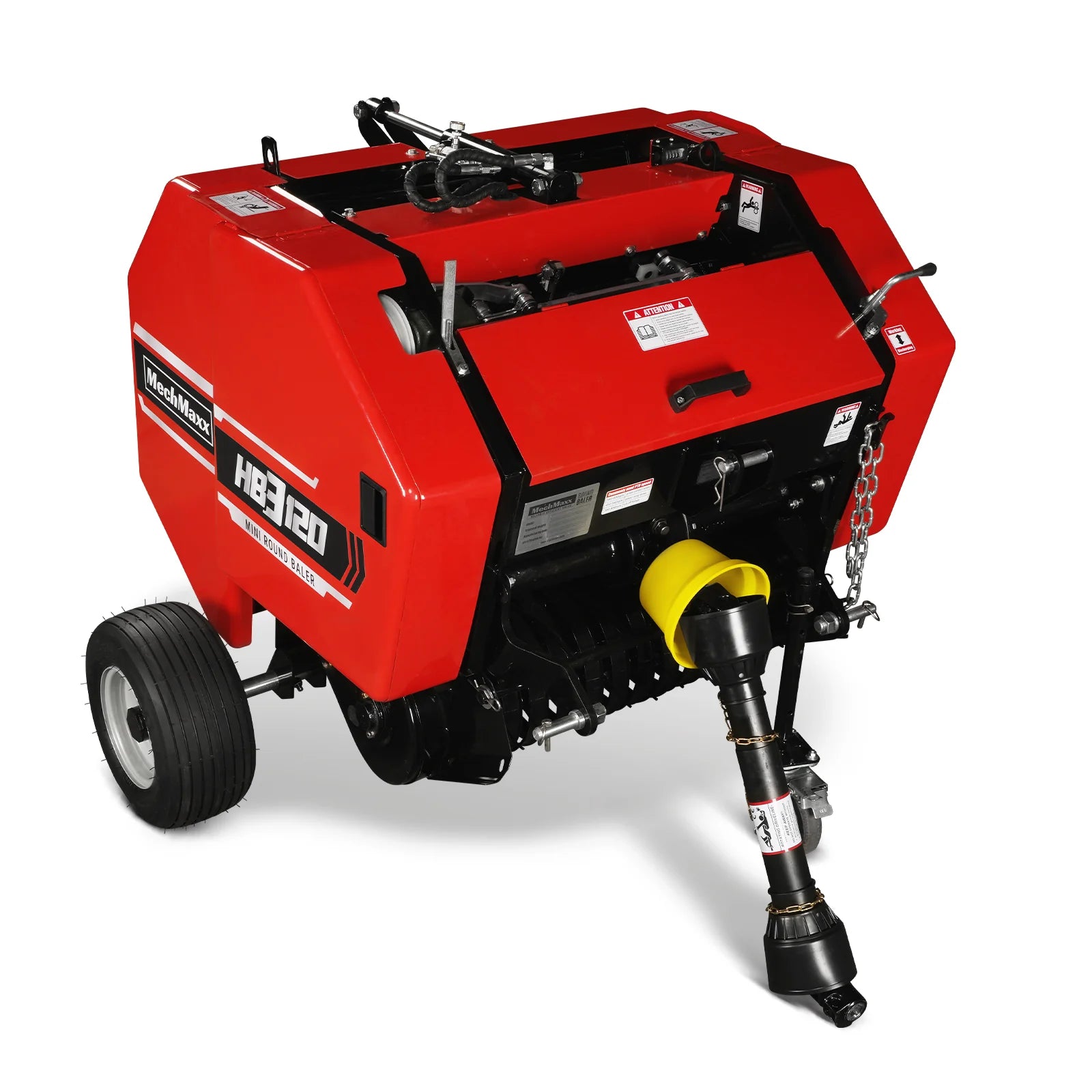

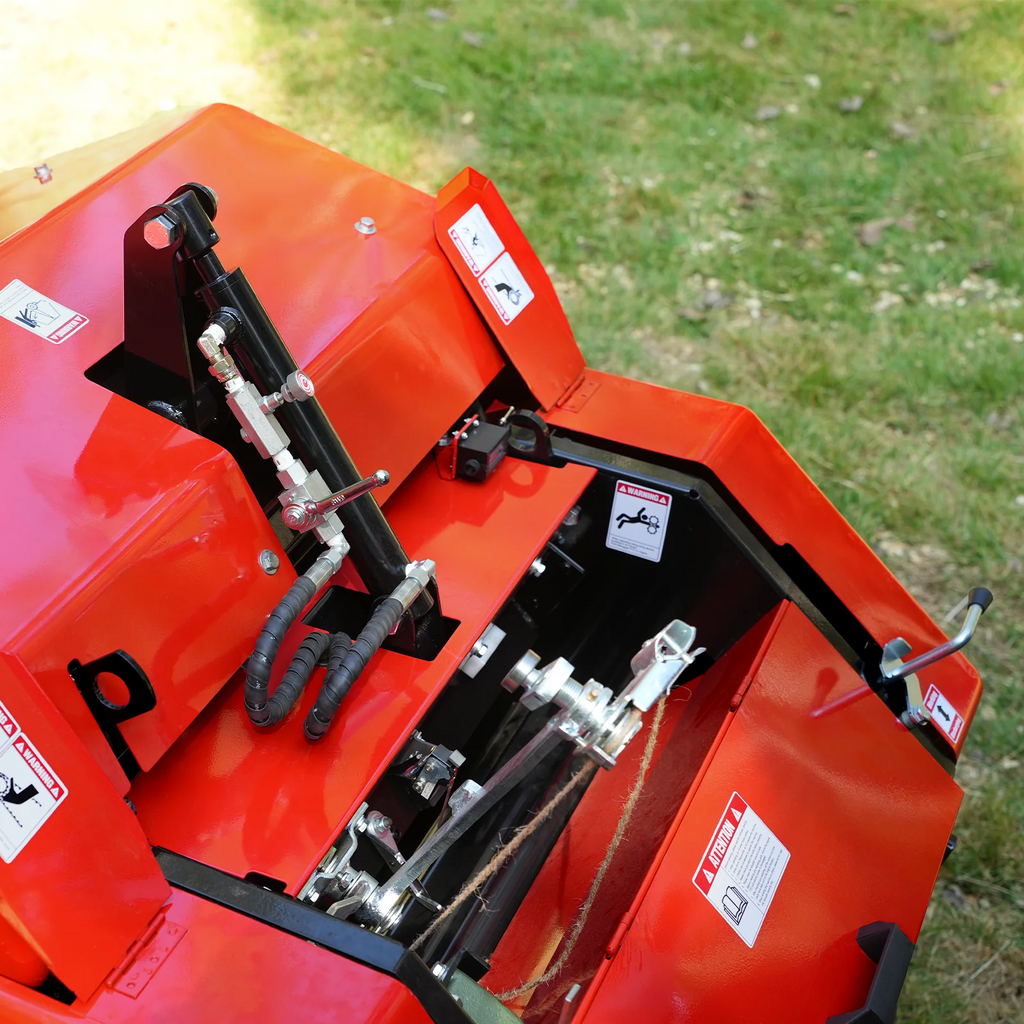

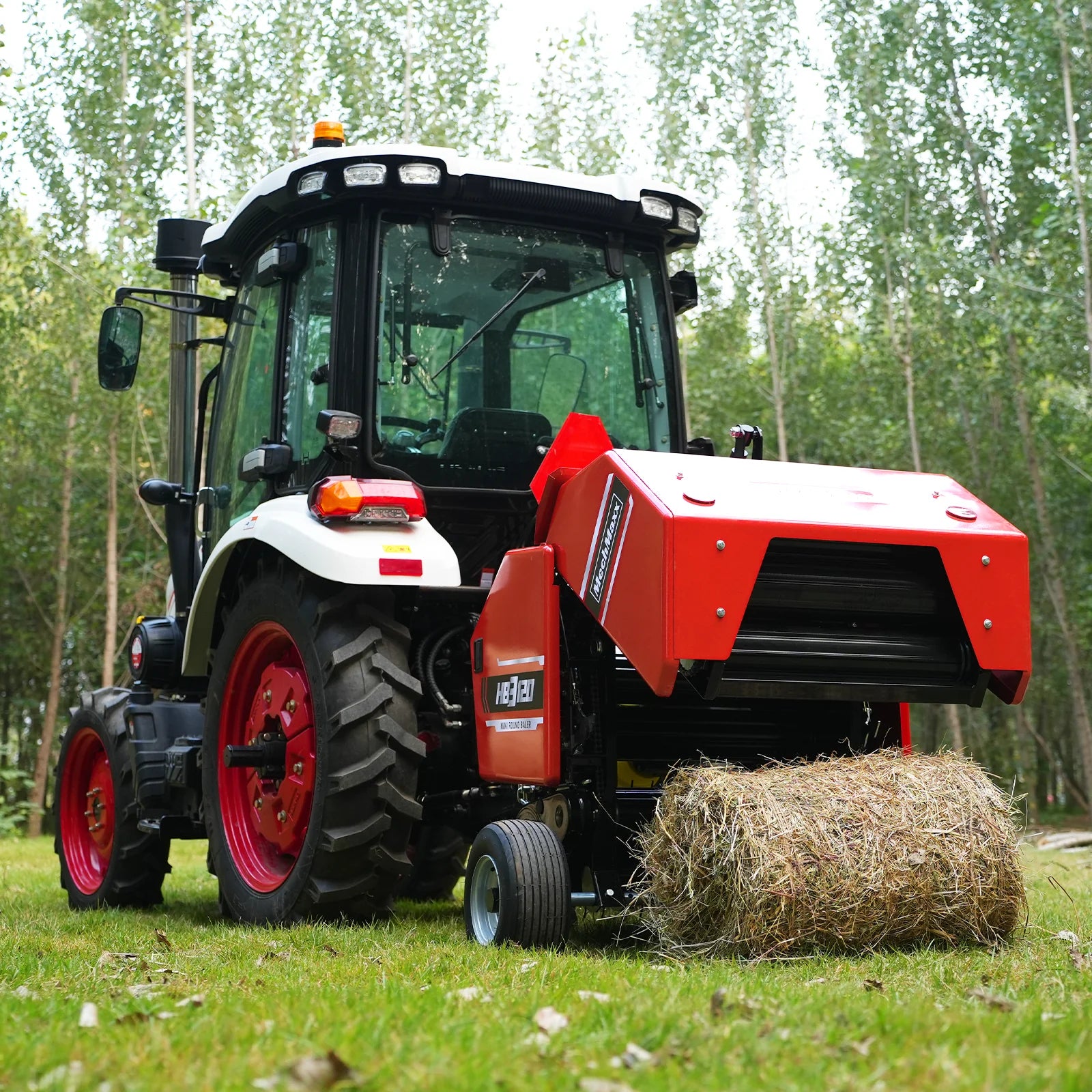

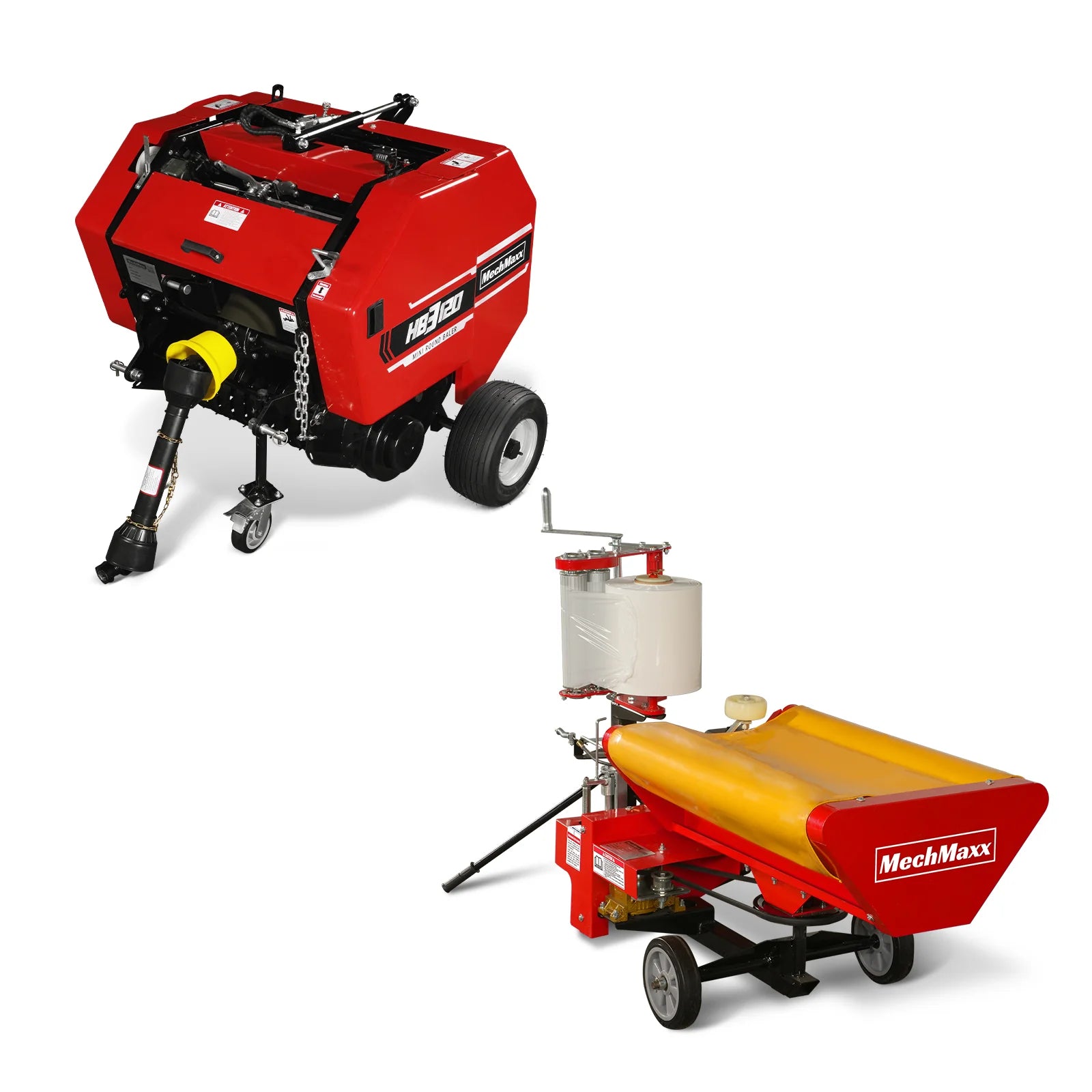

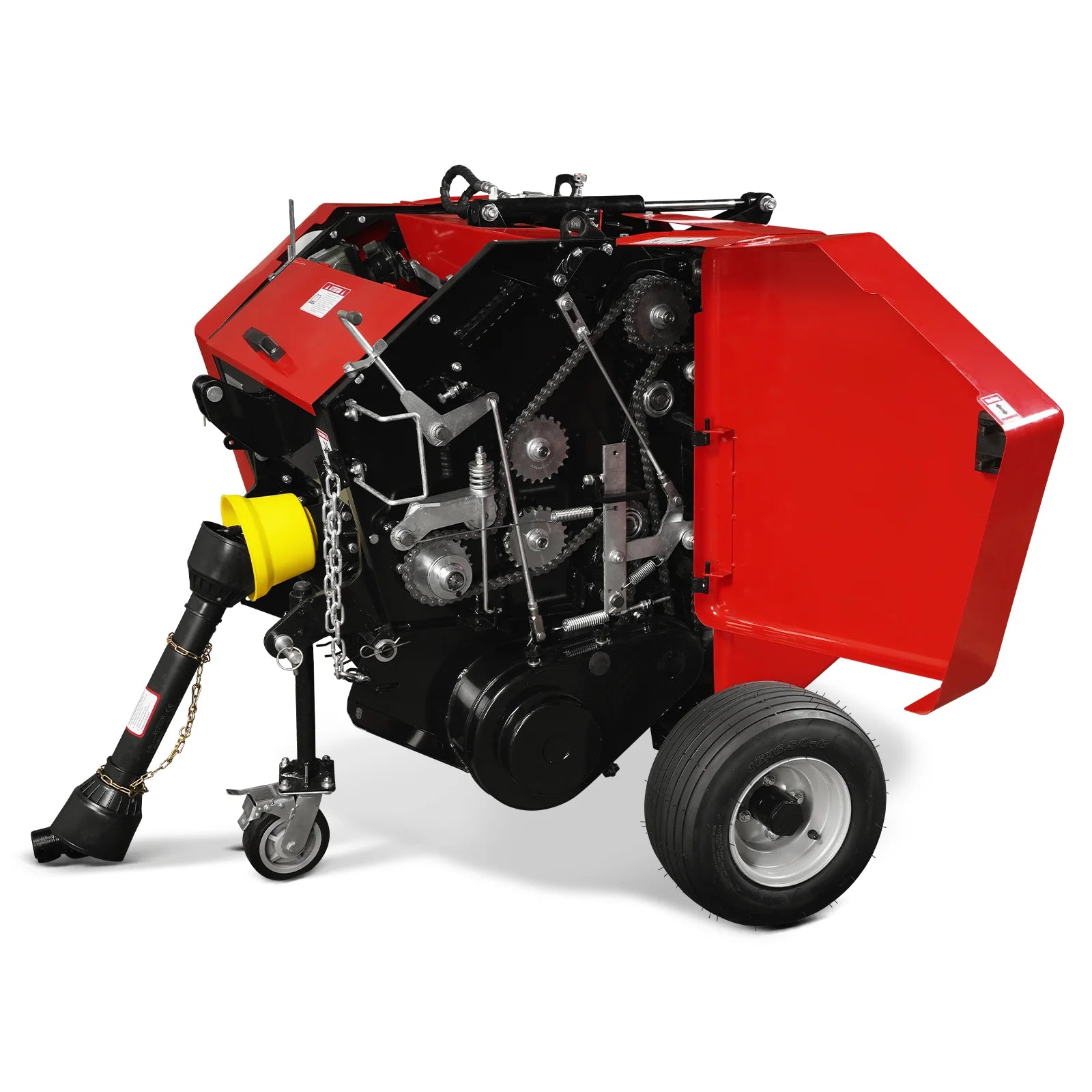

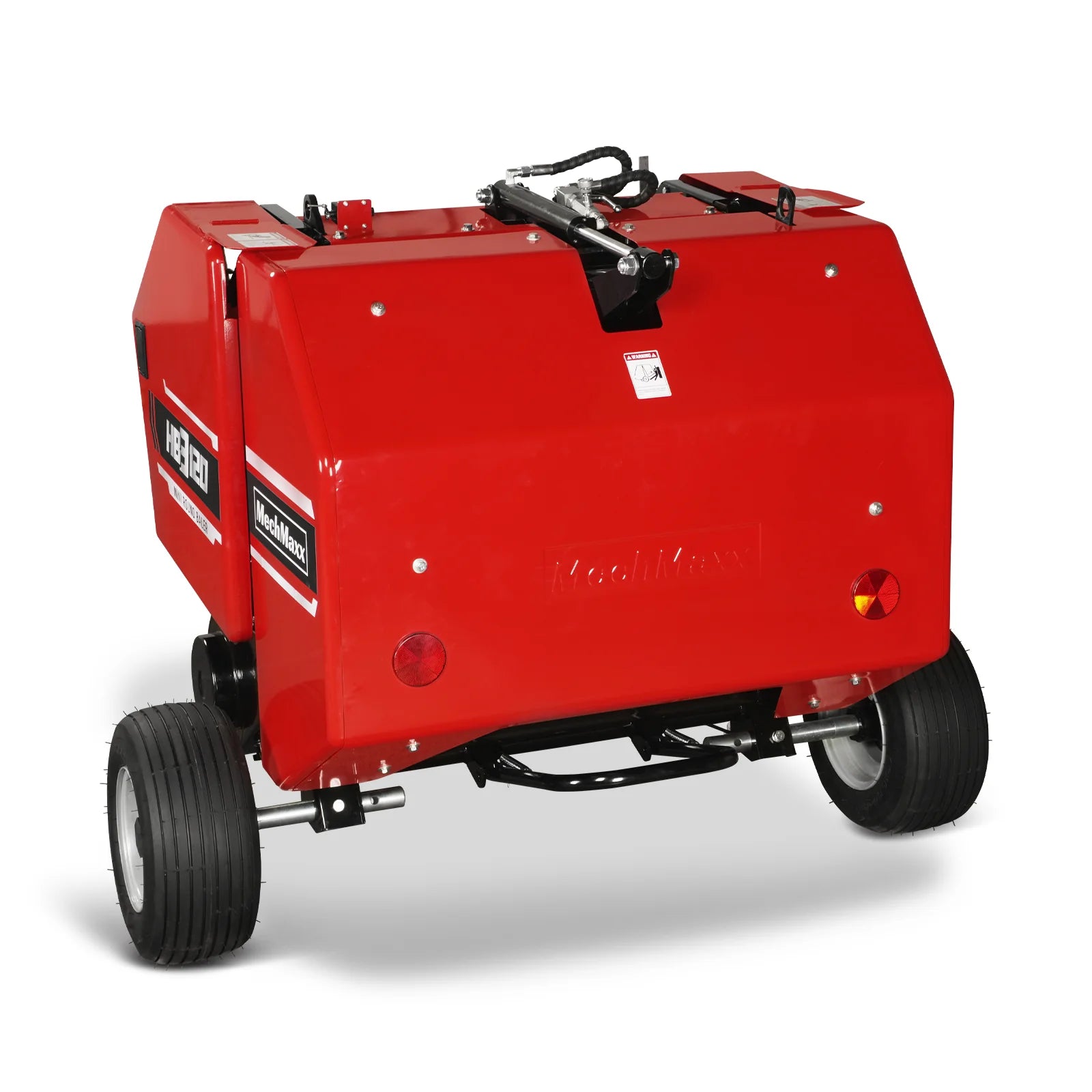

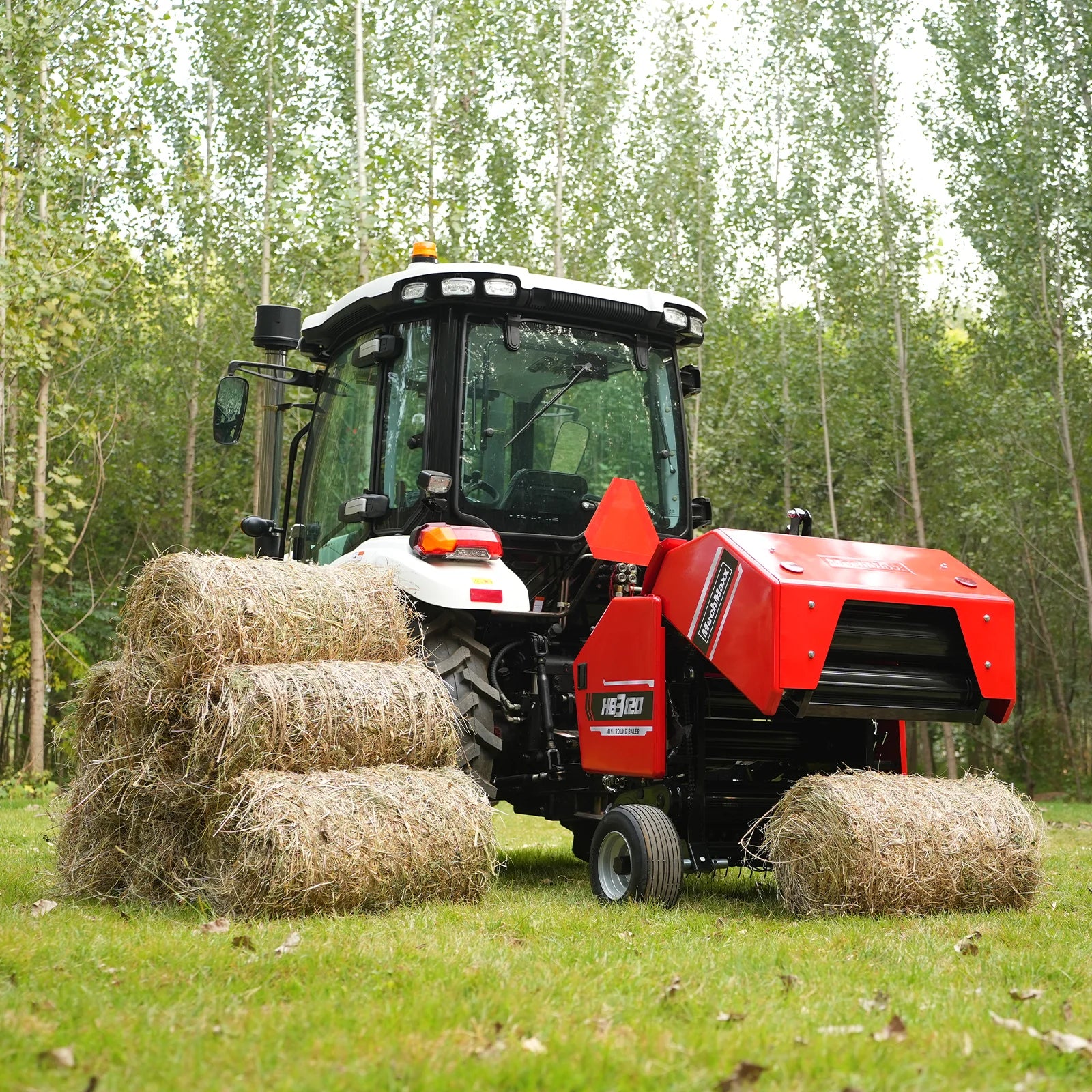

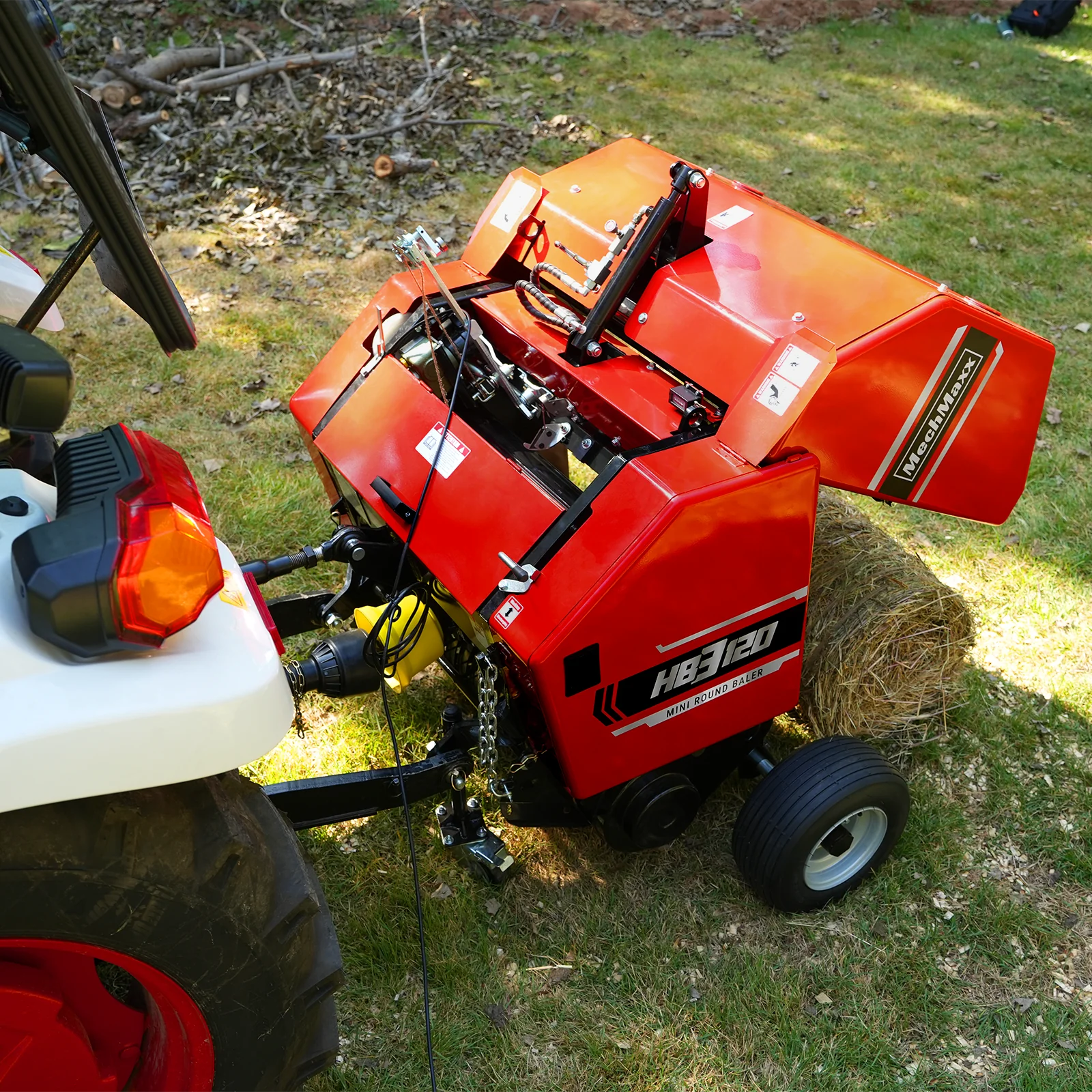

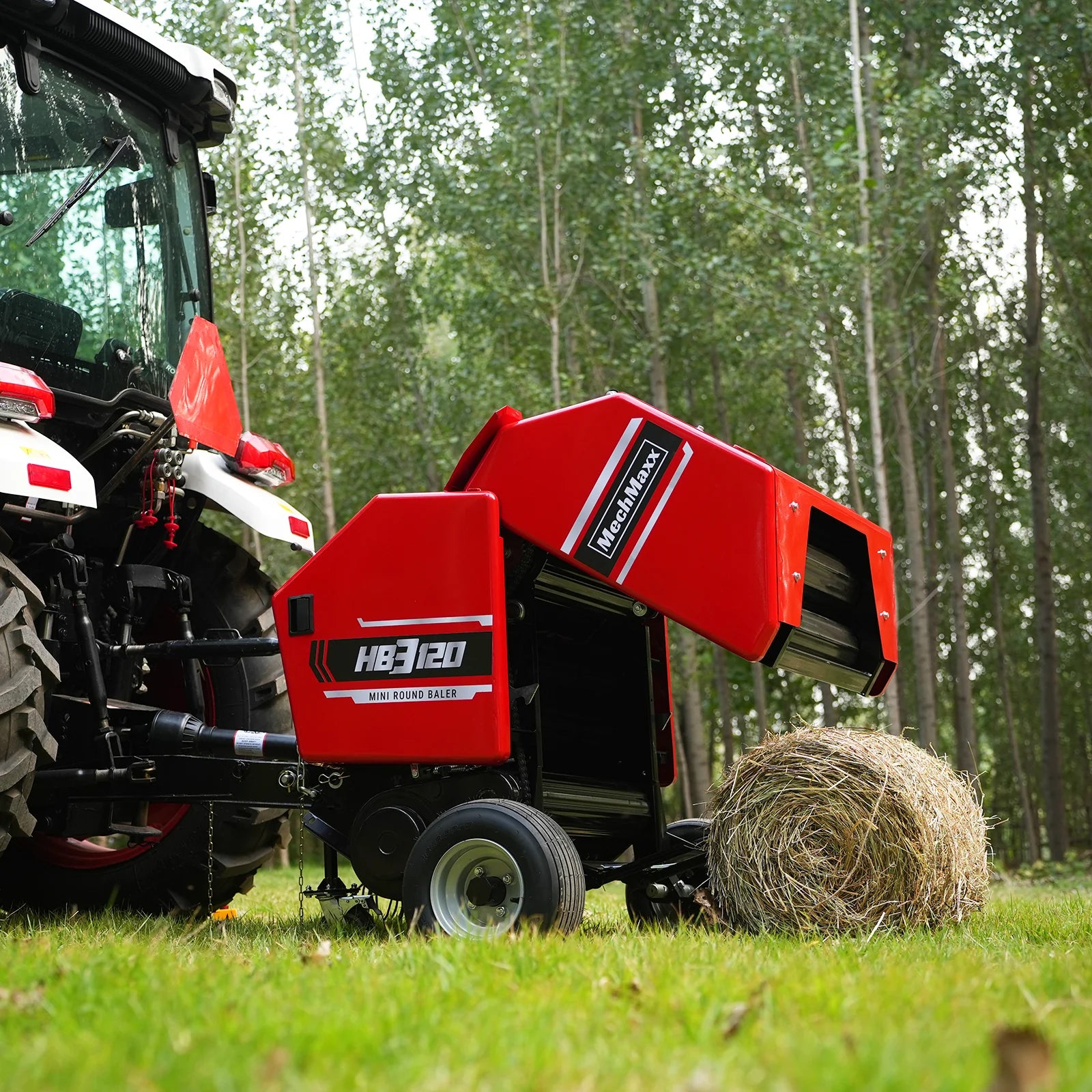

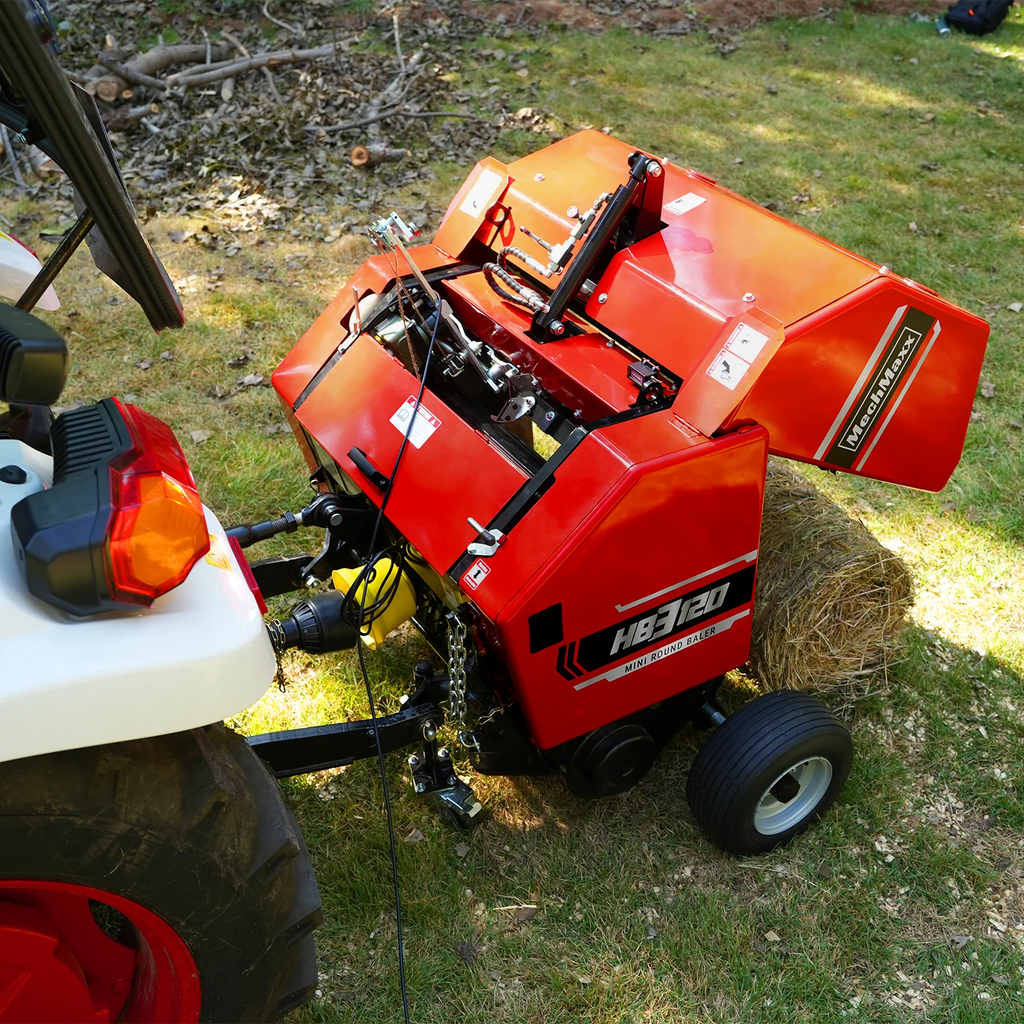

Hay Baler HB3120
| Power Required |
15-50 Hp |
| Minimum Tractor Weight |
1500 lbs |
|
Bale Size （Diameter X Width）
|
φ20 X 28 in
|
| Bale Weight |
30 - 50 lbs |
| Overall (L x W x H) |
45 x 51 x 47 in |
| Pickup Width |
31.5 in |
| Efficiency |
1.24-3.11 mi/h |
| Capacity
|
80 - 100 Bales / Hour |
| Bale Wrapping |
Twine Wrap |
| Hydraulics |
Independent Hydraulic Power Unit, No Need Tractor Hydraulics |
| Electrical |
Aviation Plug, Easy To Connect With Tractor |
| Tire Size |
16 x 6.5 in |
| PTO Shaft Speed |
540 rpm |
| Spline End |
1.375in Z6 |
| 3-Point Hitch |
CAT 1 |
| Gearbox Oil Type |
80W90 EP Gear Oil |
| Finish
|
Powder Coating |
| Warranty |
1 Year |
| Shipping Box |
47 x 45 x 47 in |
| Weight (N.W./G.W.) |
970 /992 lbs |

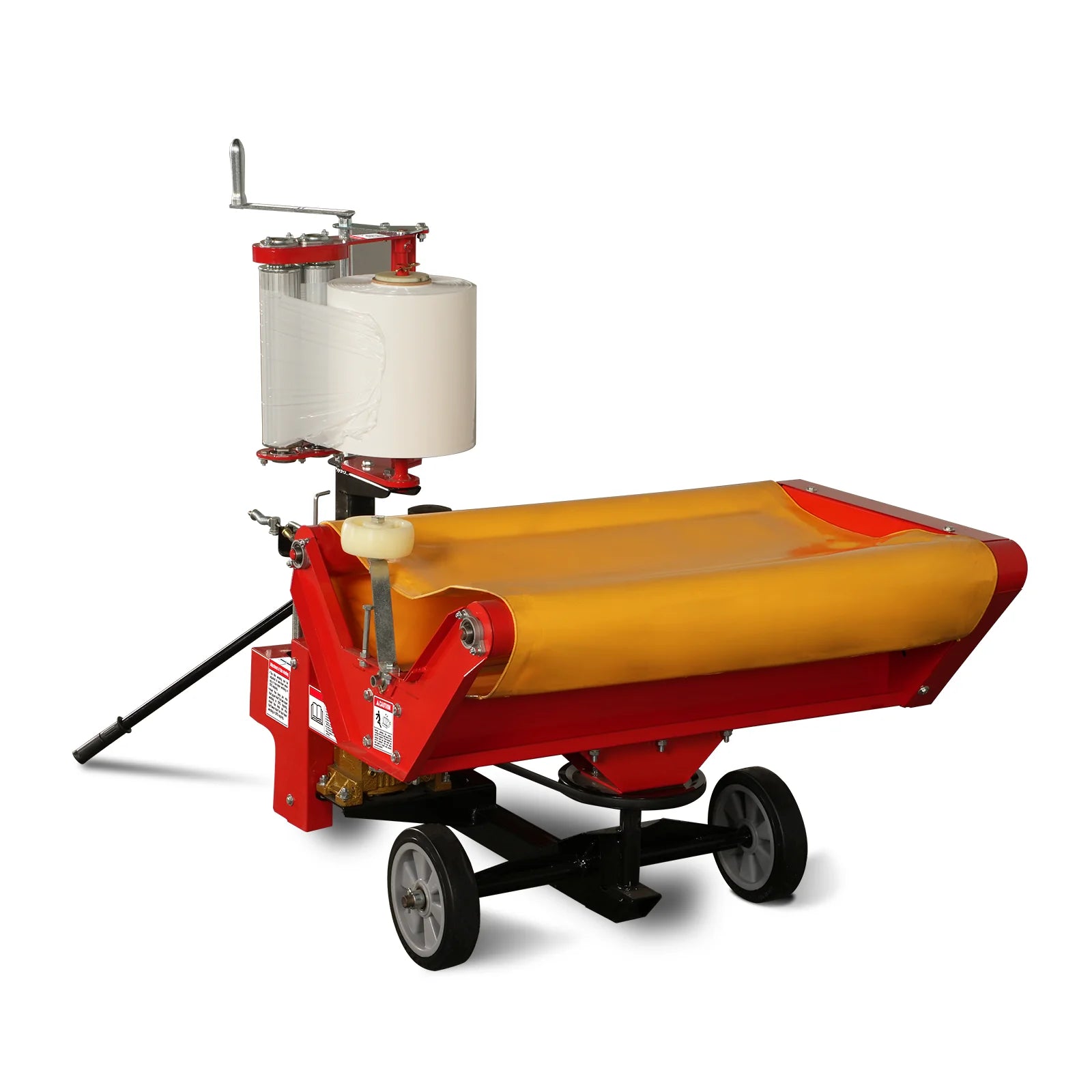

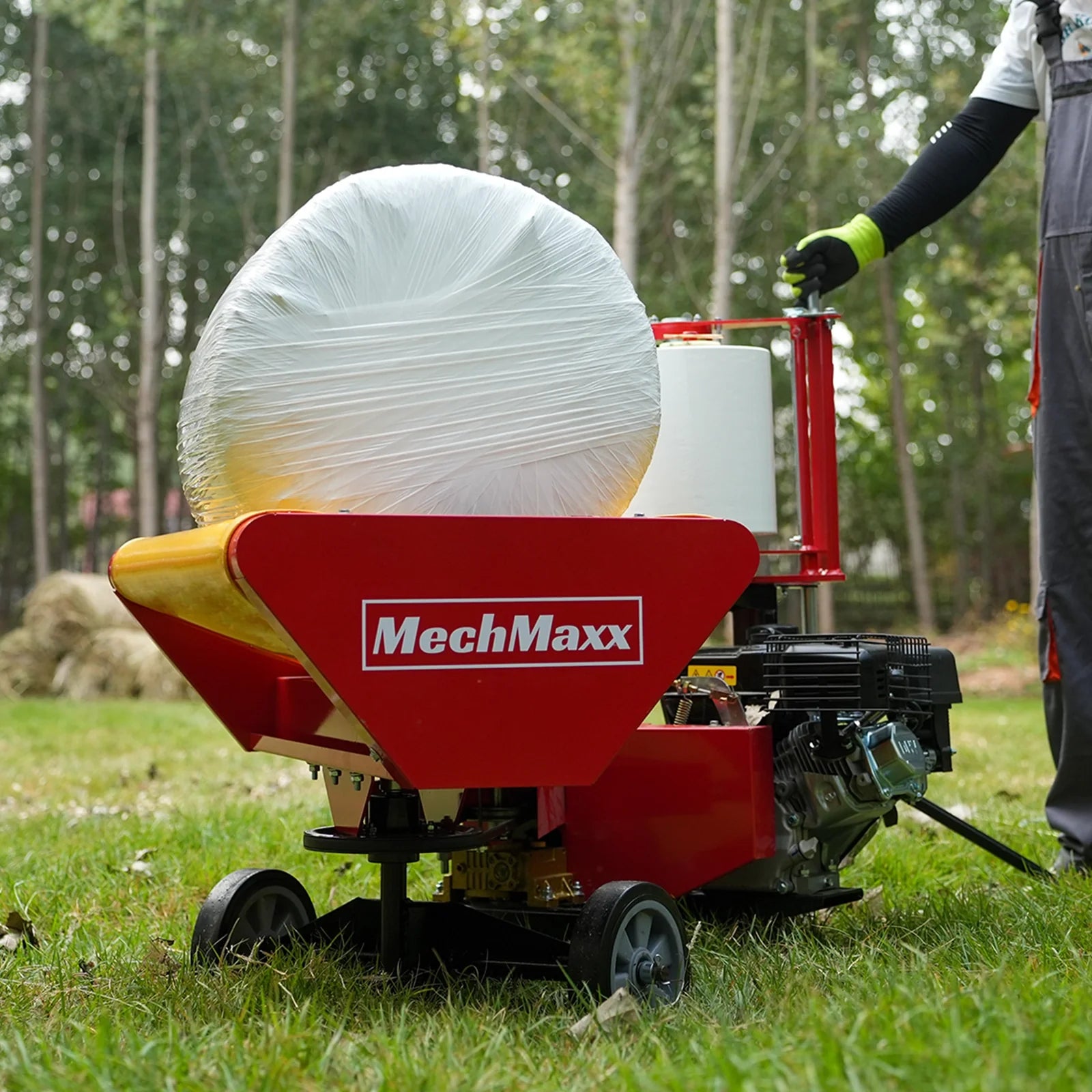

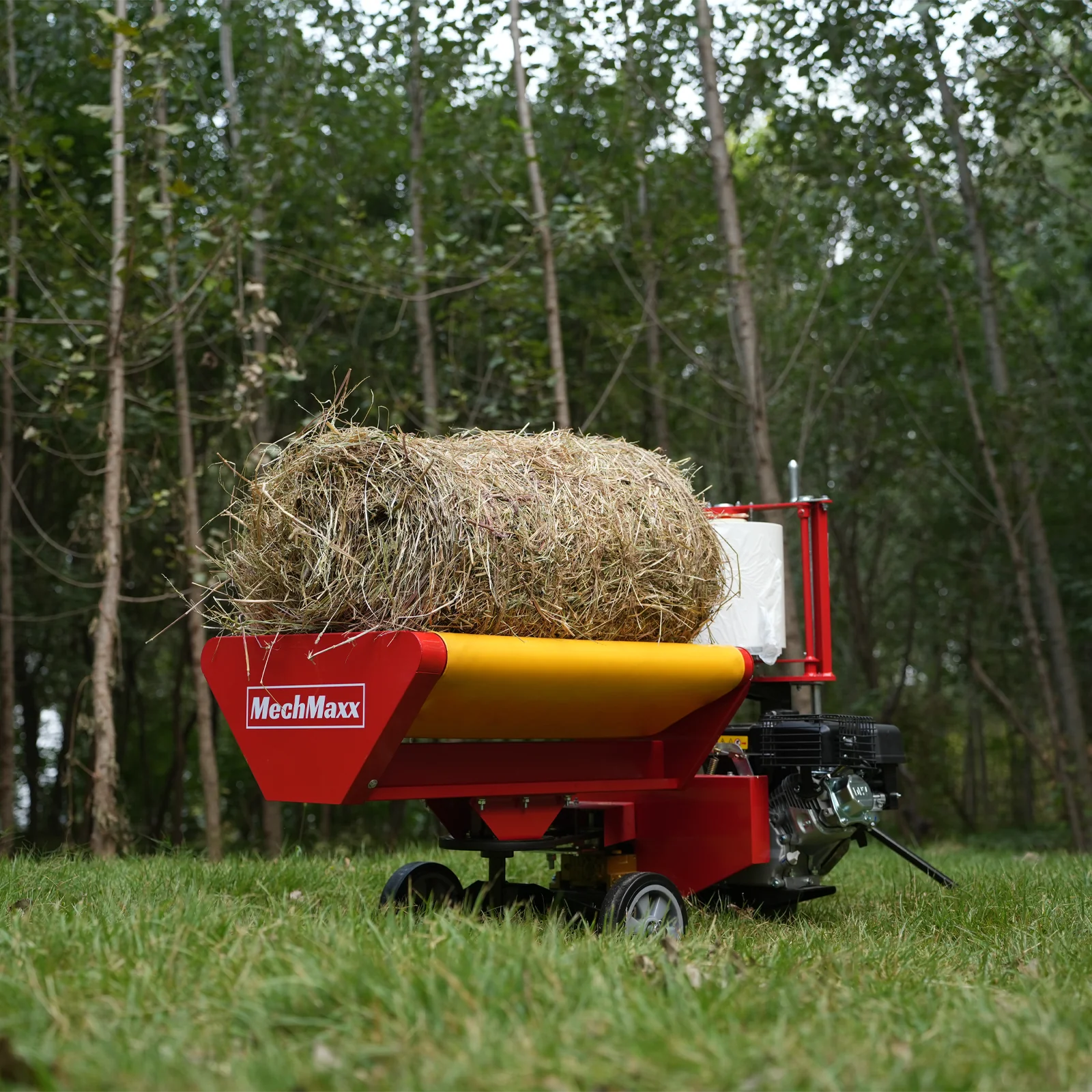

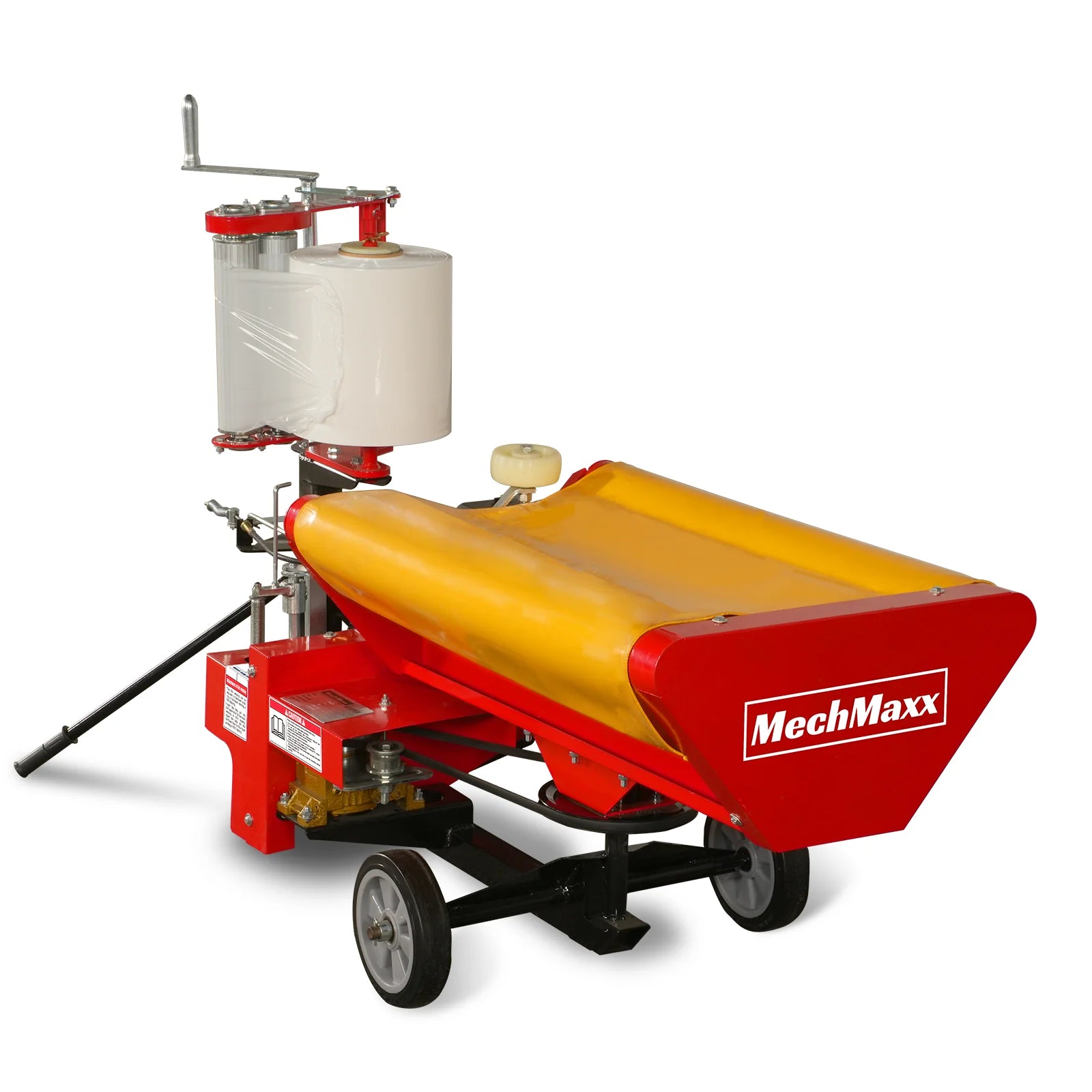

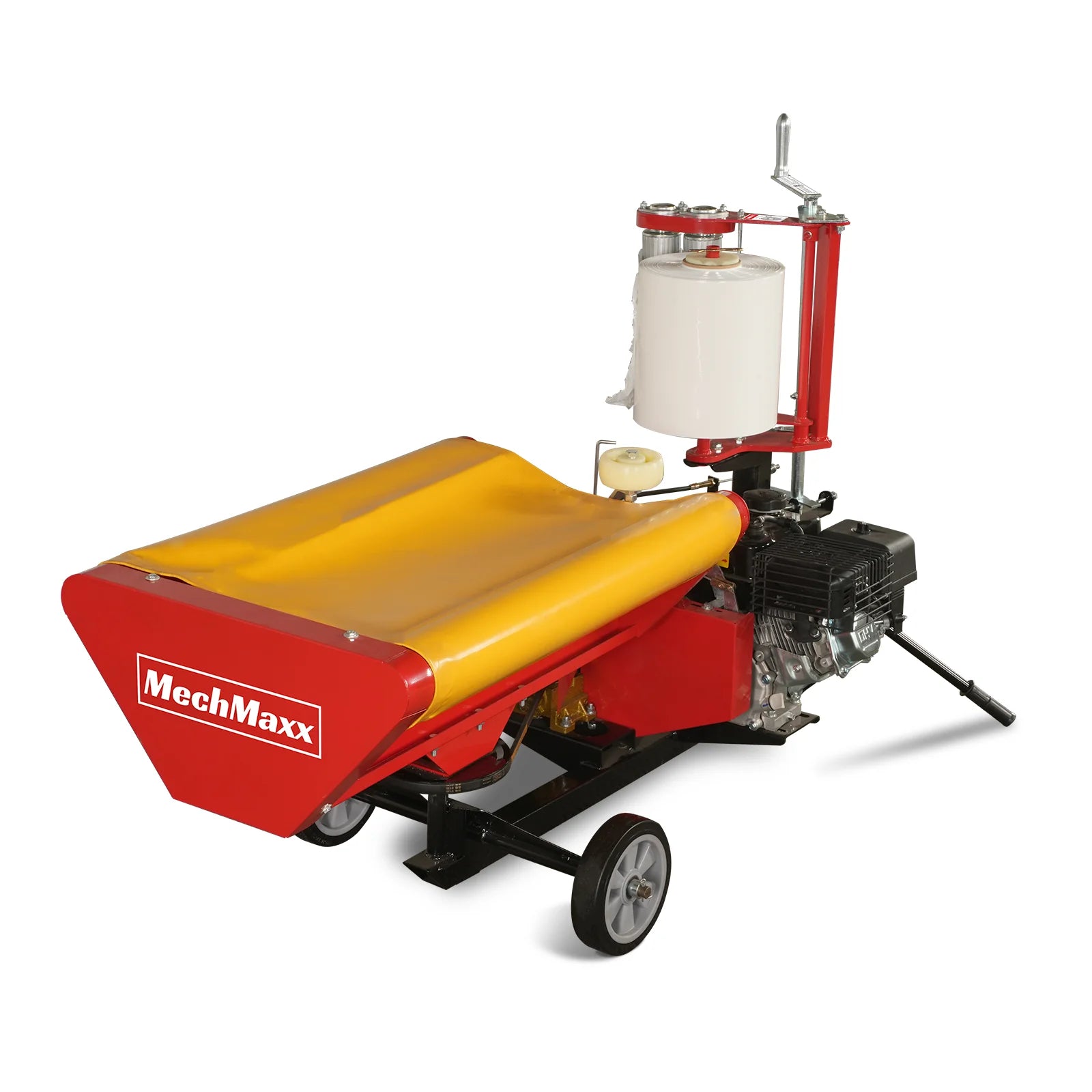

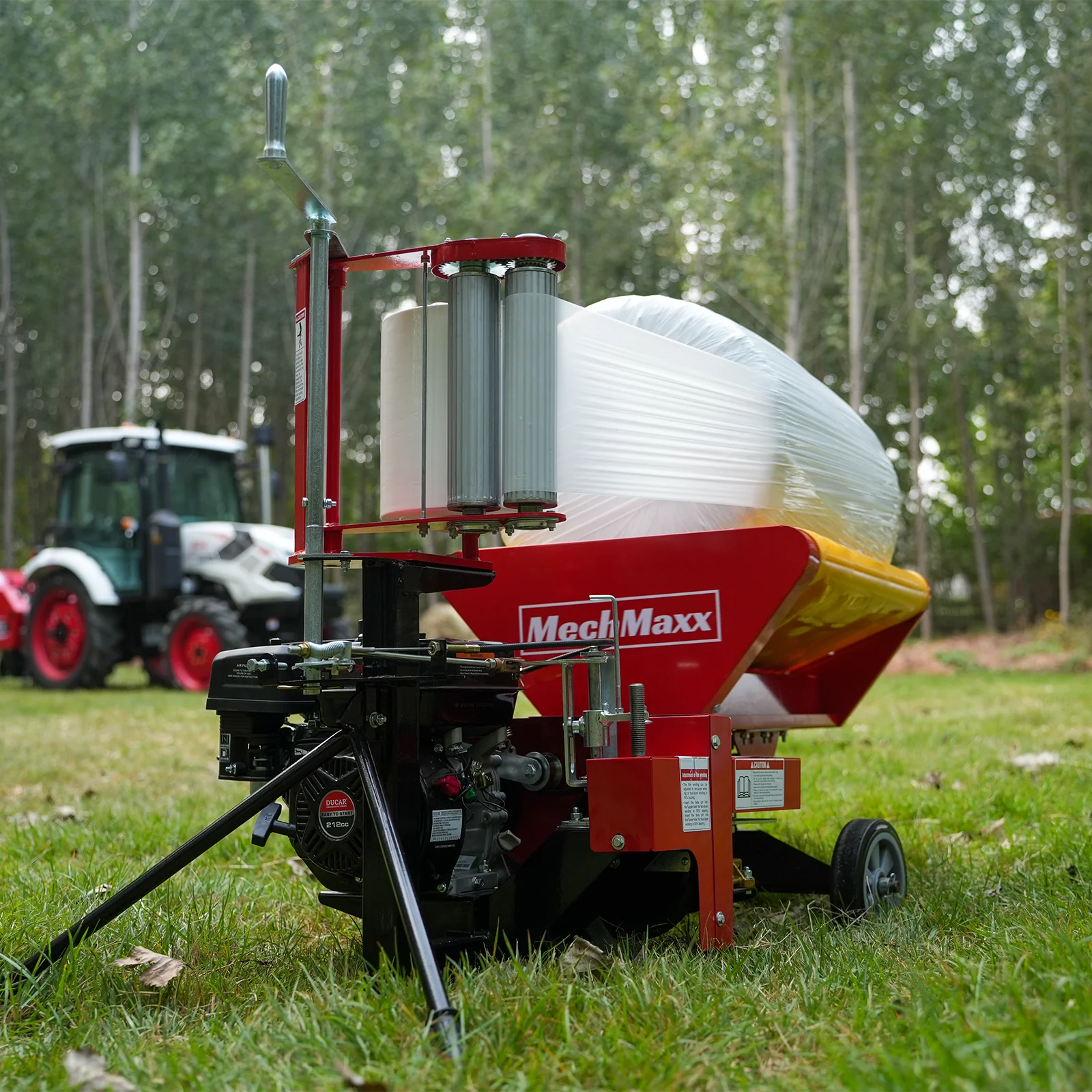

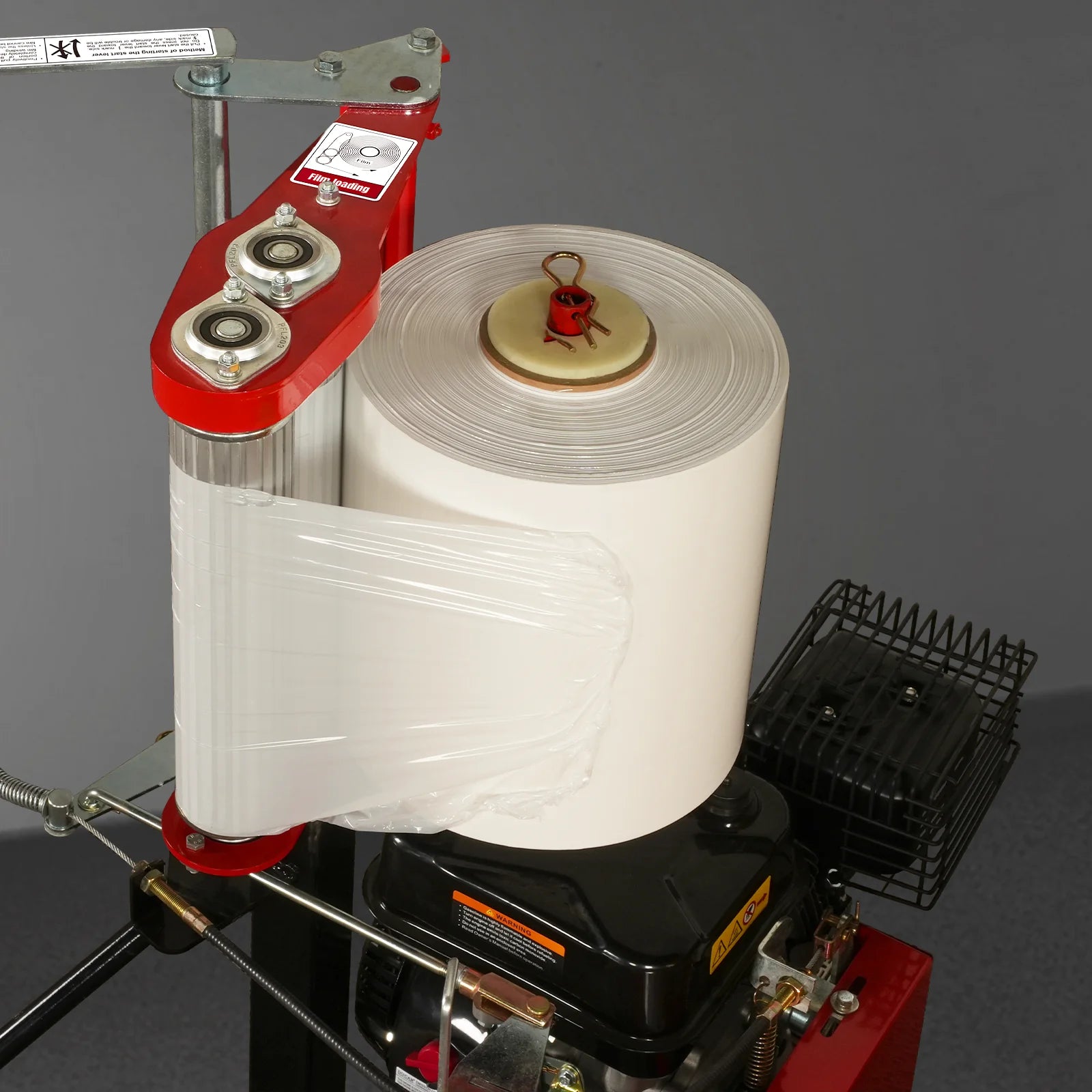

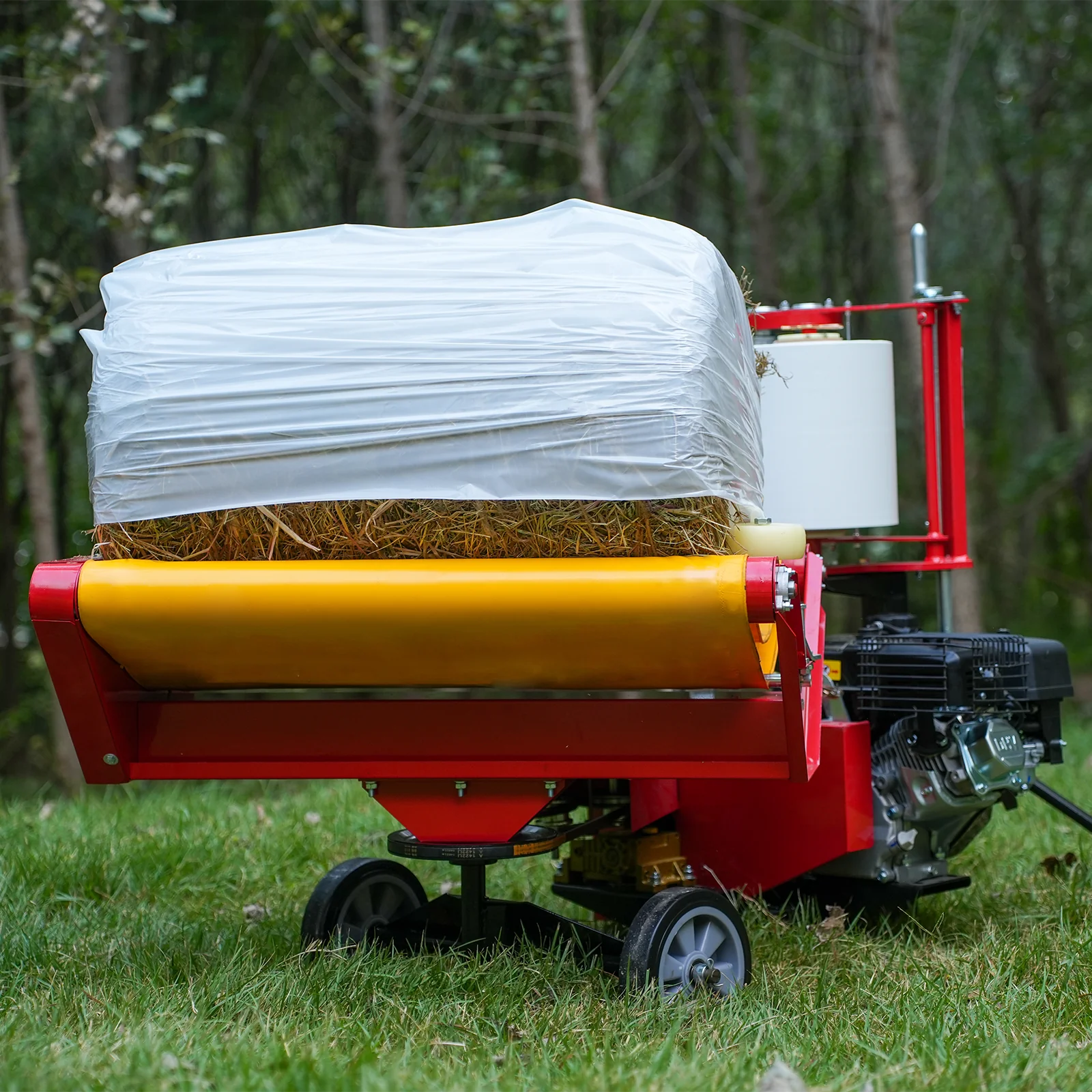

Hay Wrapper HW20
| Engine
|
DUCAR DH212 |
| Suitable Bale Size |
20 x 28 in ; 24 x 28 in |
| Overall (L x W x H) |
59 x 34 x 40.5 in |
| Finish
|
Powder Coating |
| Warranty |
1 Year |
| Shipping Box |
61 x 27 x 27 in |
| Weight (N.W./G.W.) |
276/298 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
