| Engine
|
DUCAR DH420E |
Blades Material |
A8 （5Cr8MoVSi） |

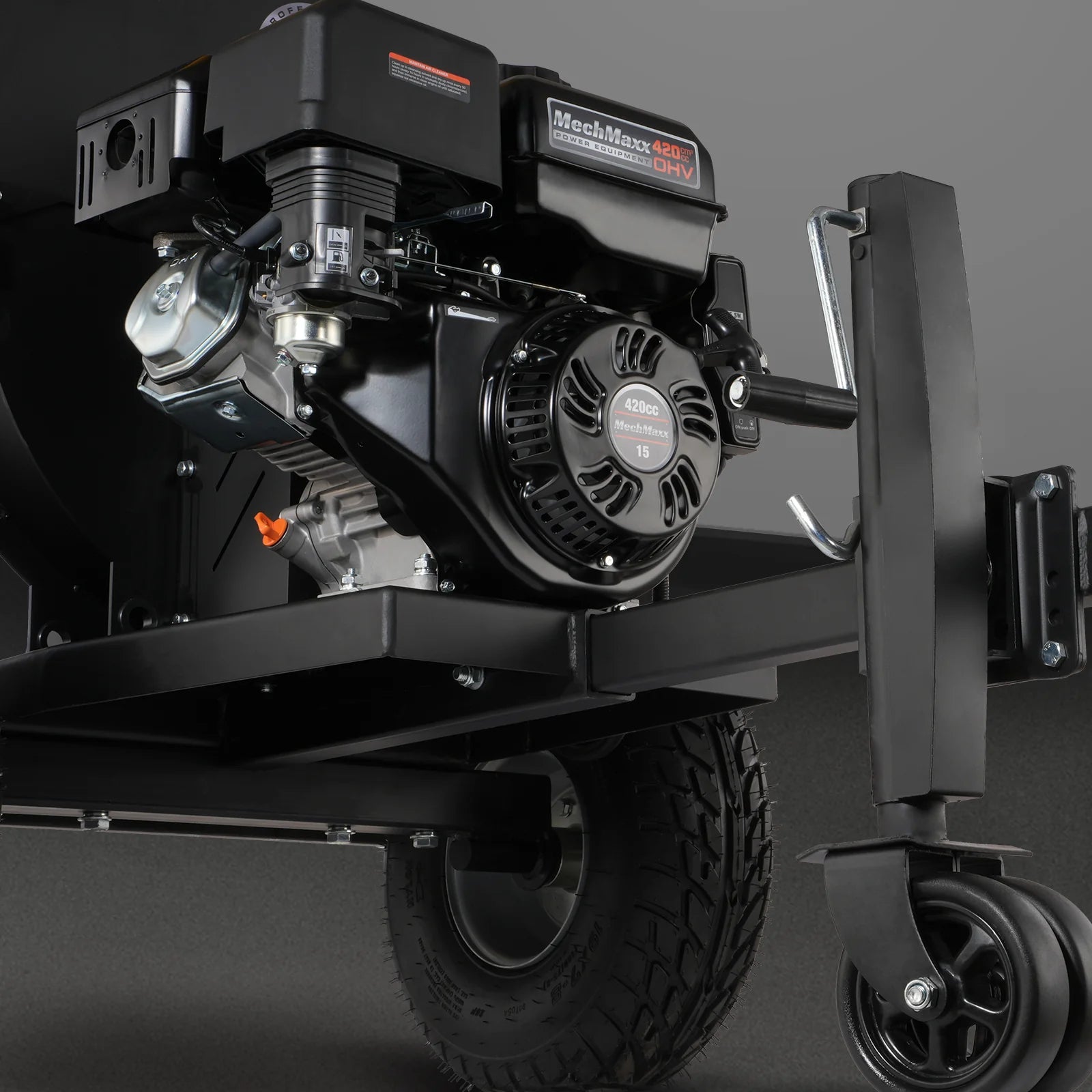

| Engine Type |
Single Cylinder, 4 Stroke, Air-Cooled, OHV |
Blades Type |
Double Edge Blade |
| Displacement |
420 cc; 15 HP |
Discharge Chute |
360 Degree Rotating |
| Start |
E-Start |
Emergency Stop |
Stop Bar + Button |
| Battery |
12V 20Ah Lead-Acid |
Feed Chute Opening Method |
Hinge |
| Belt |
2 x V-Belts |

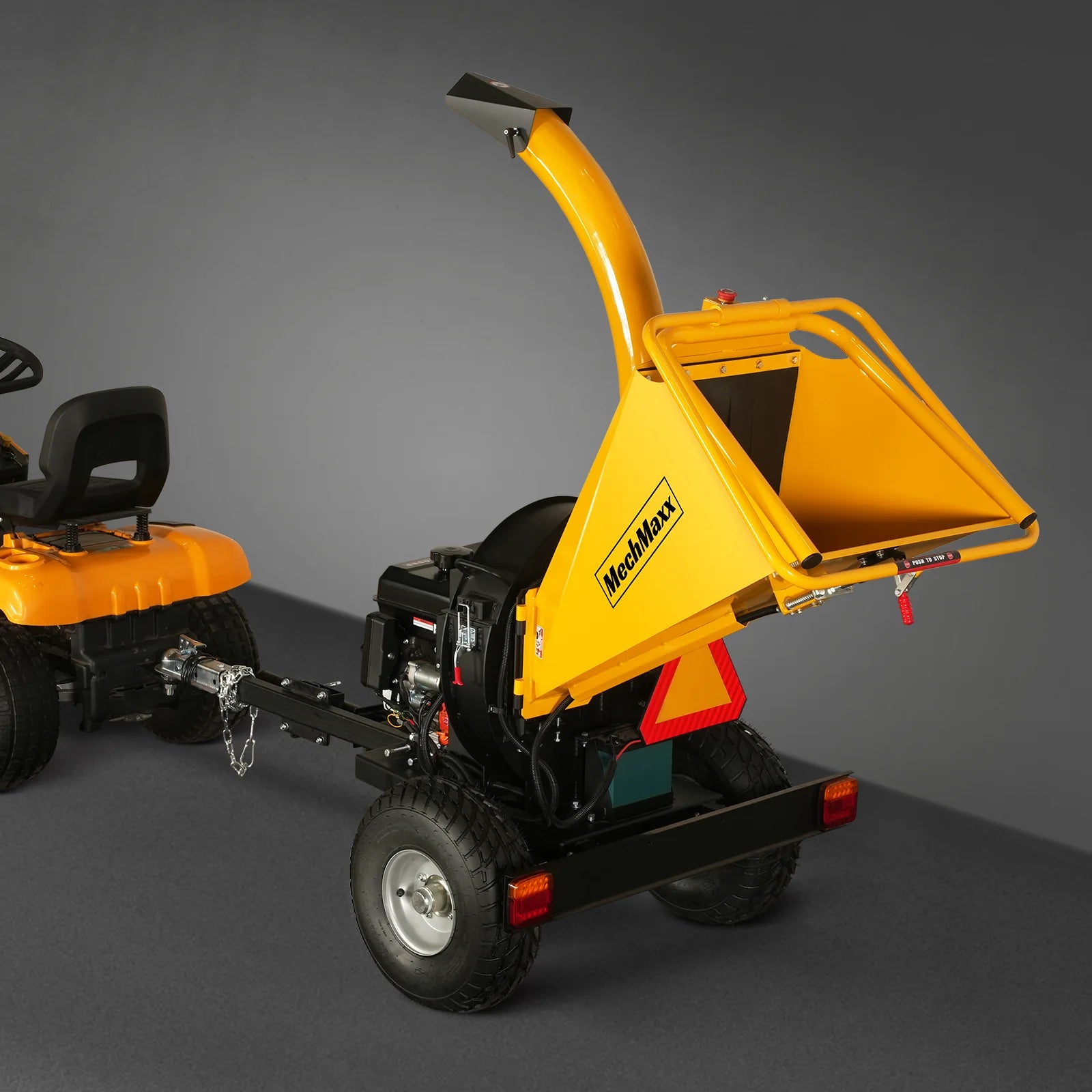

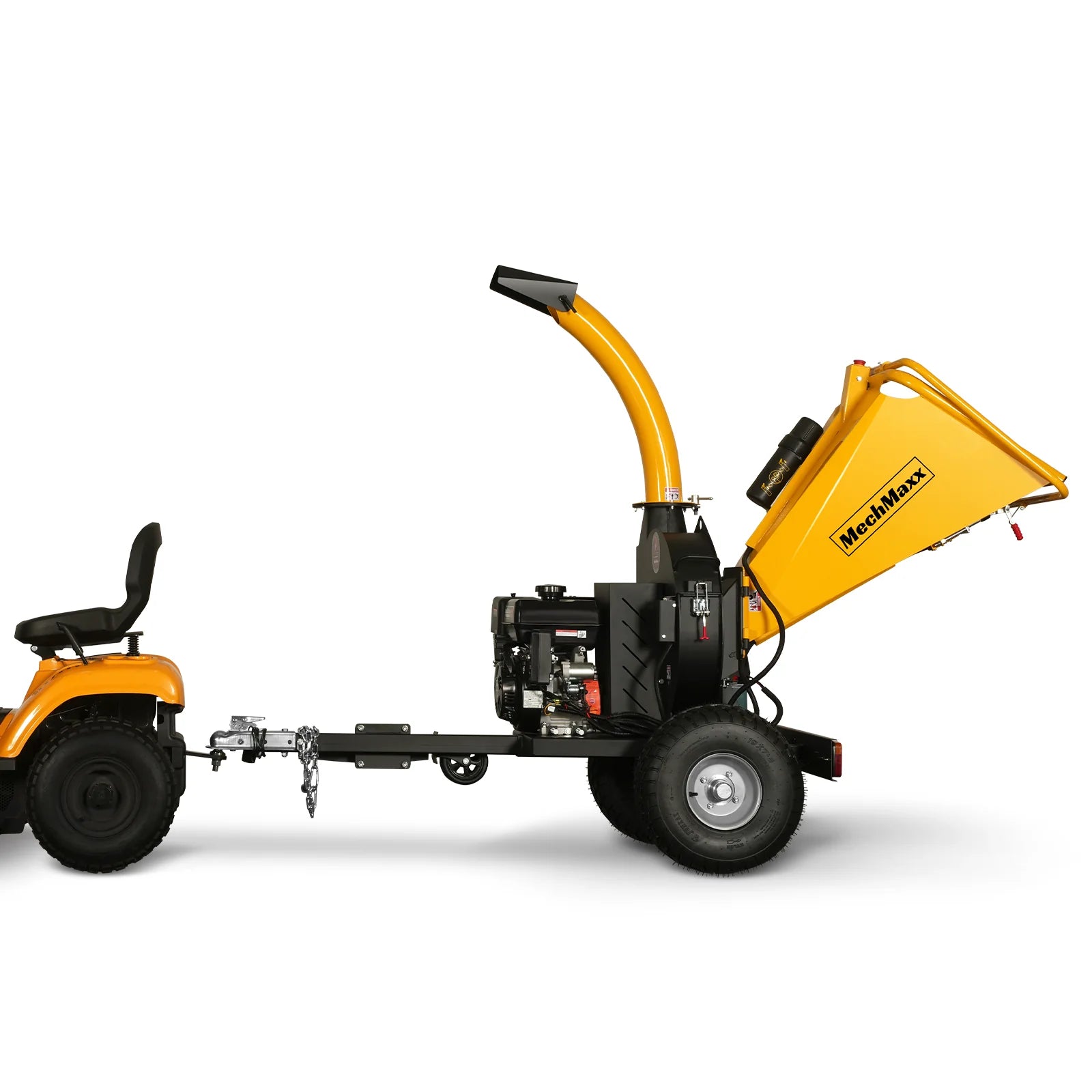

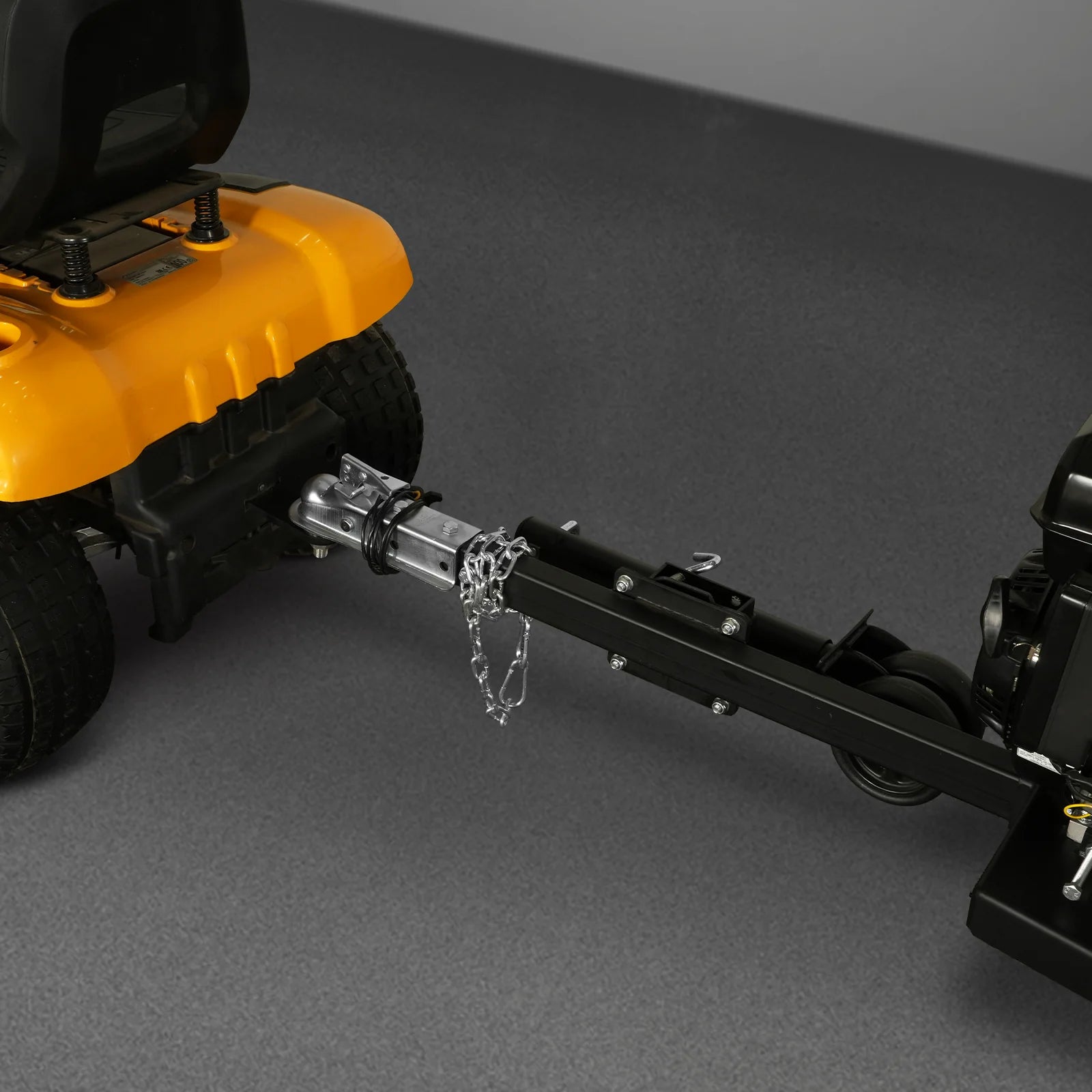

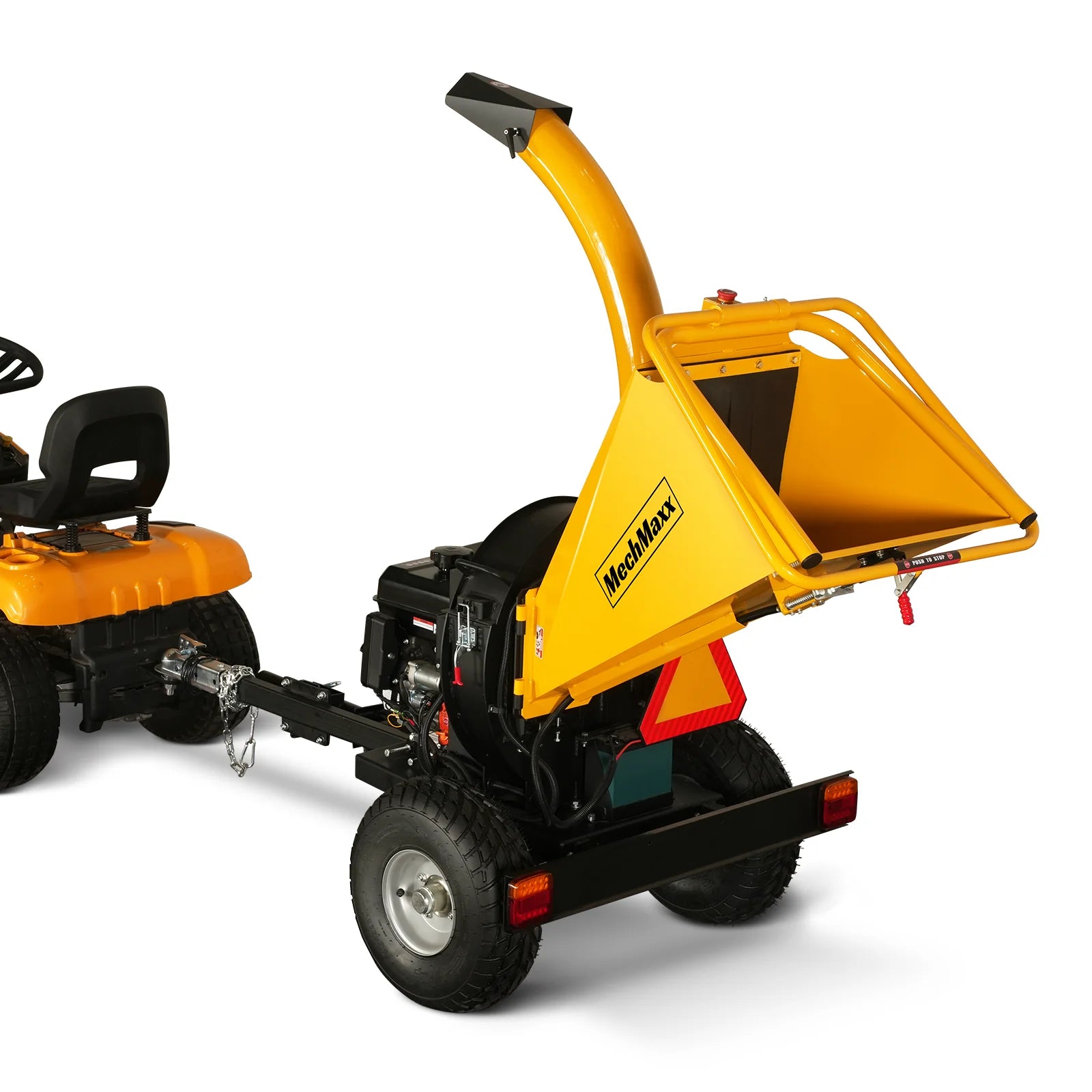

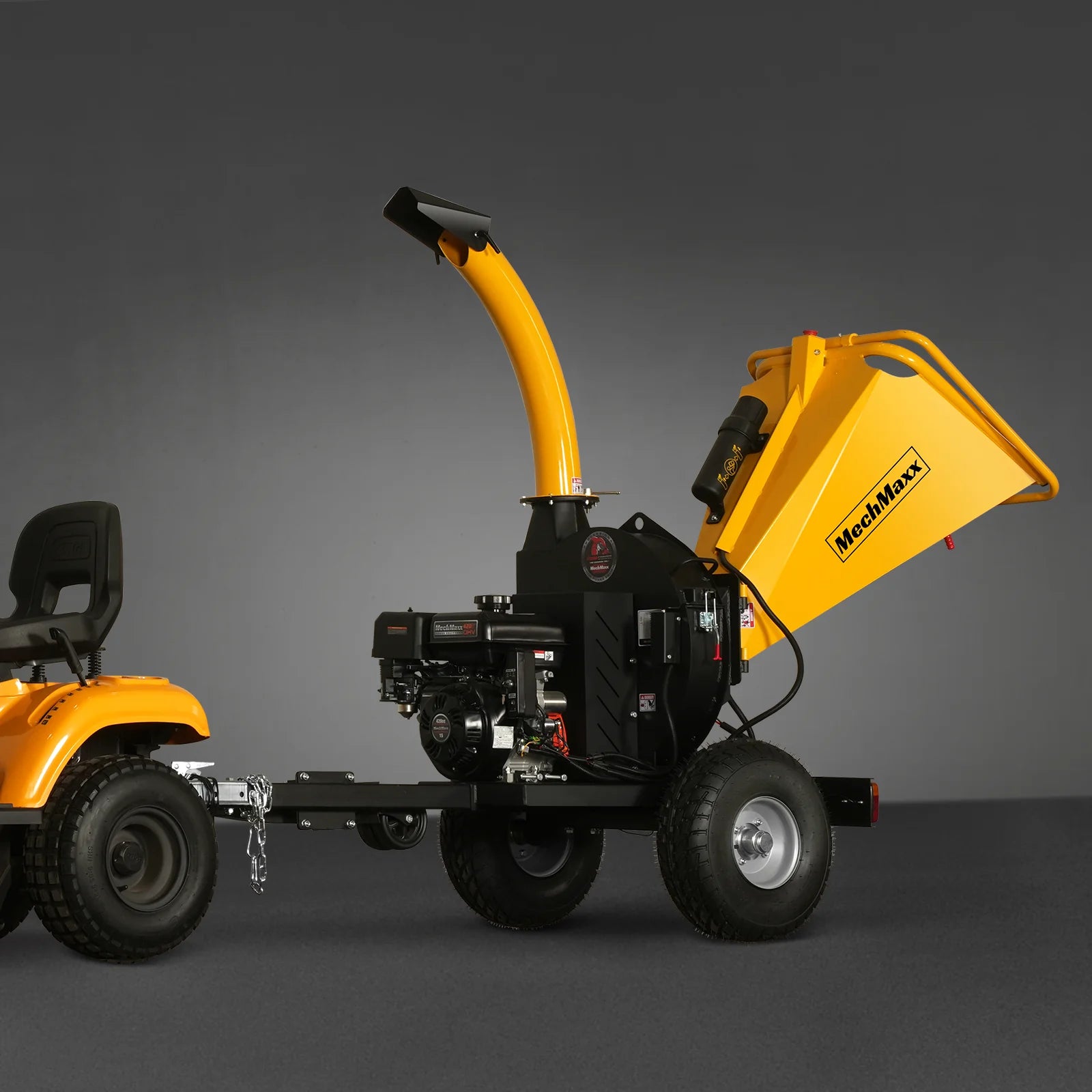

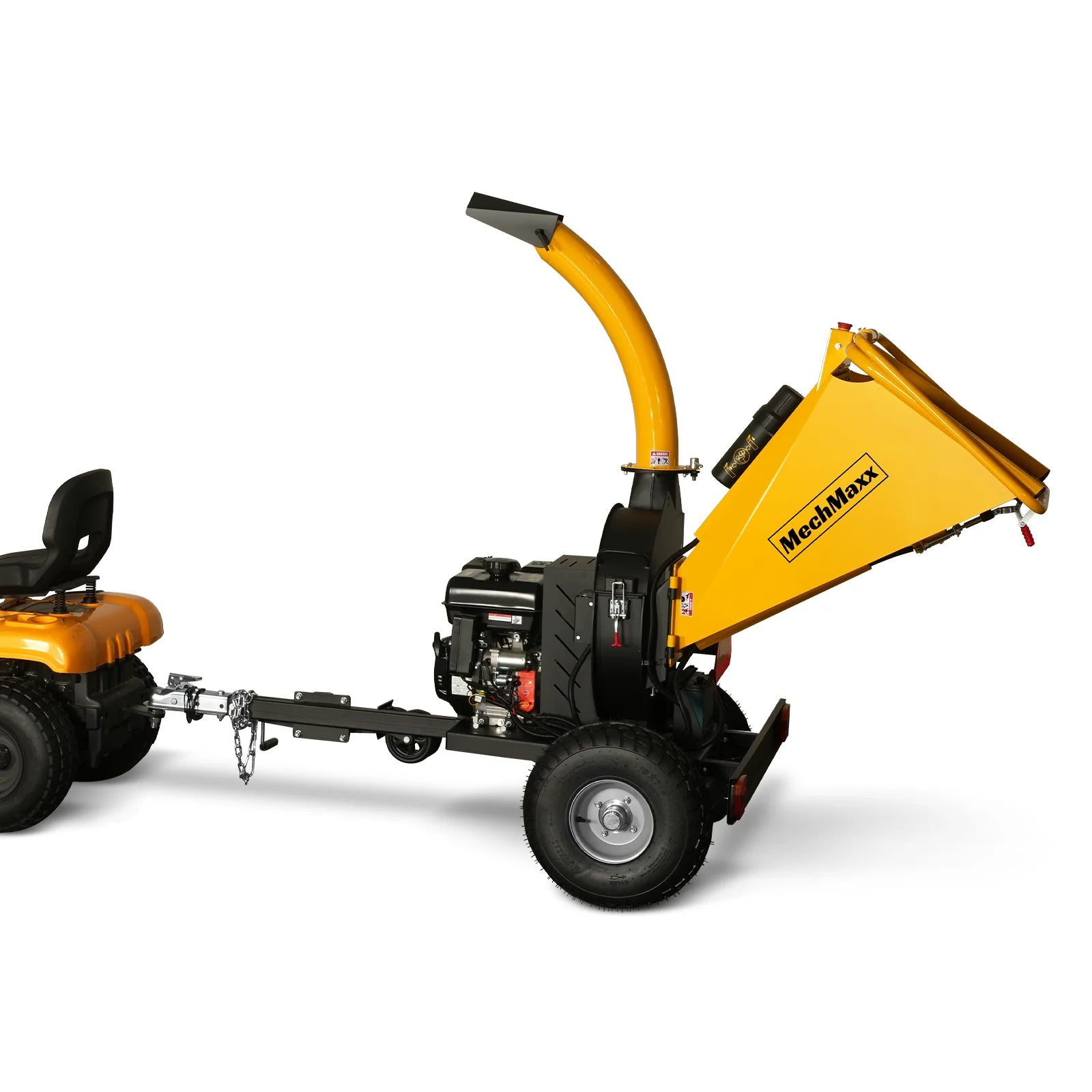

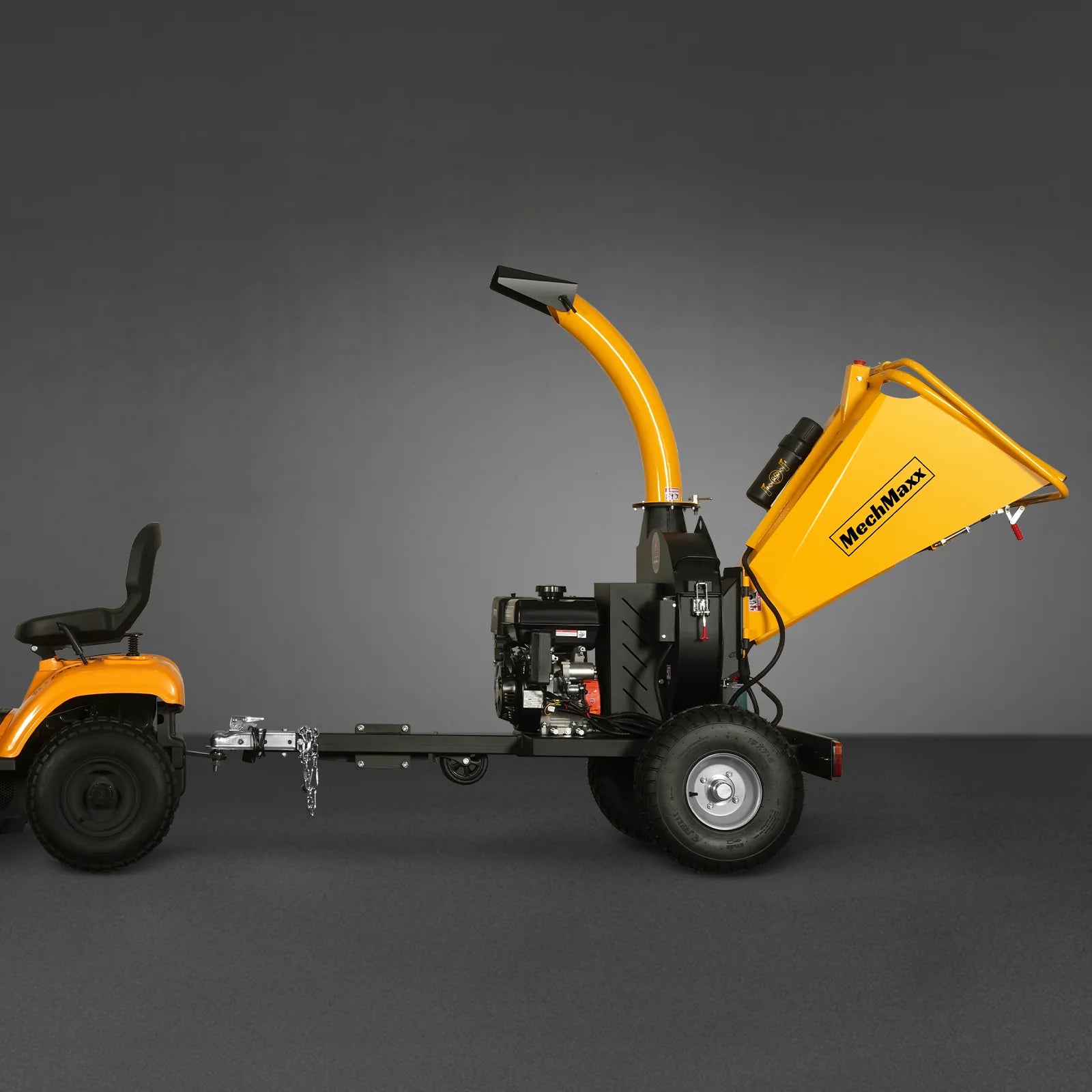

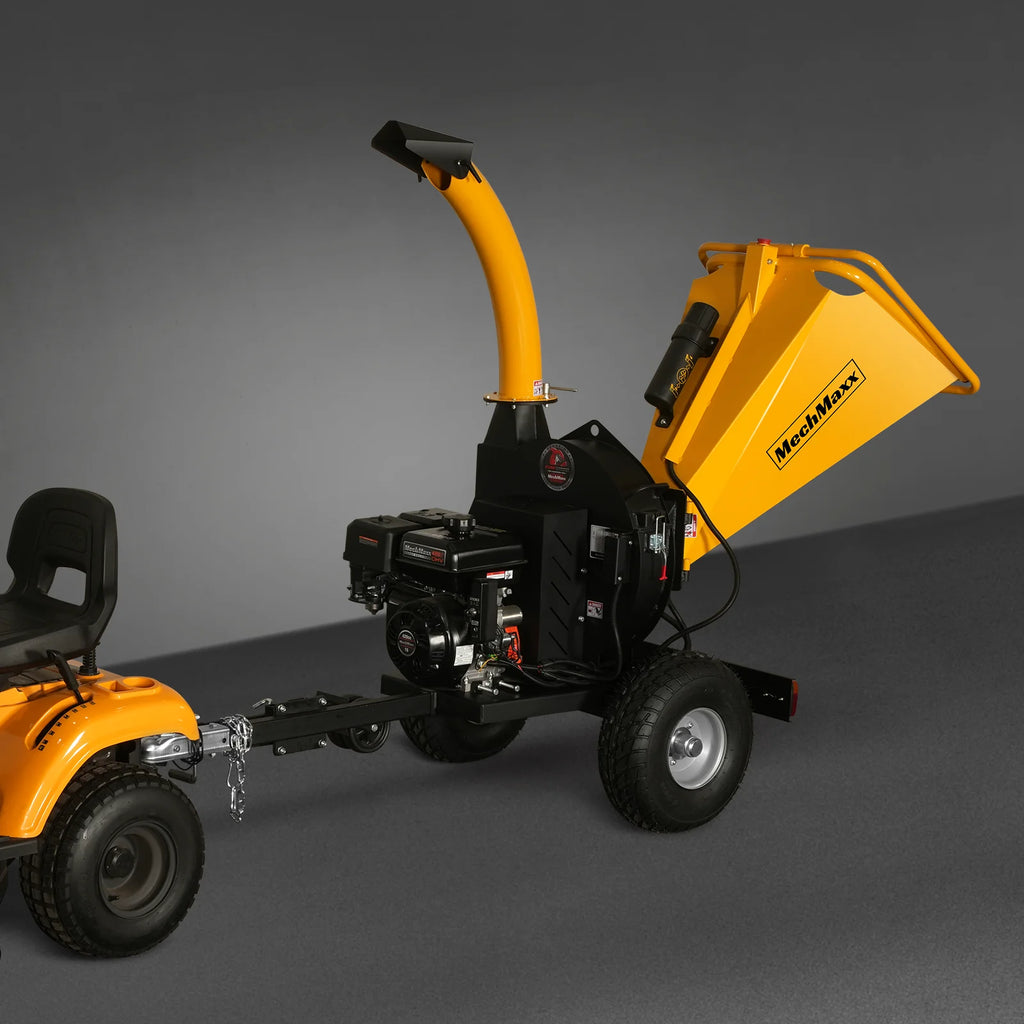

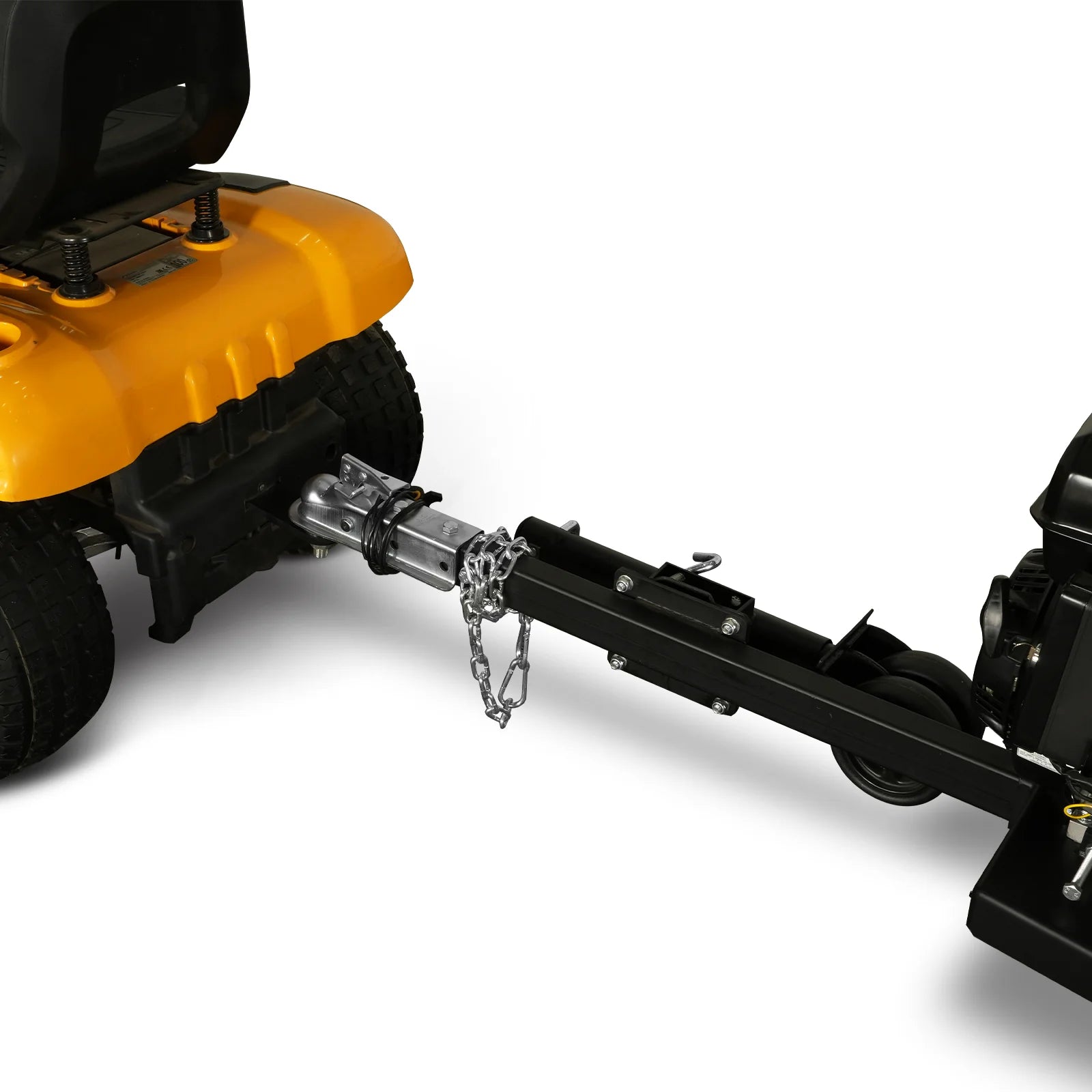

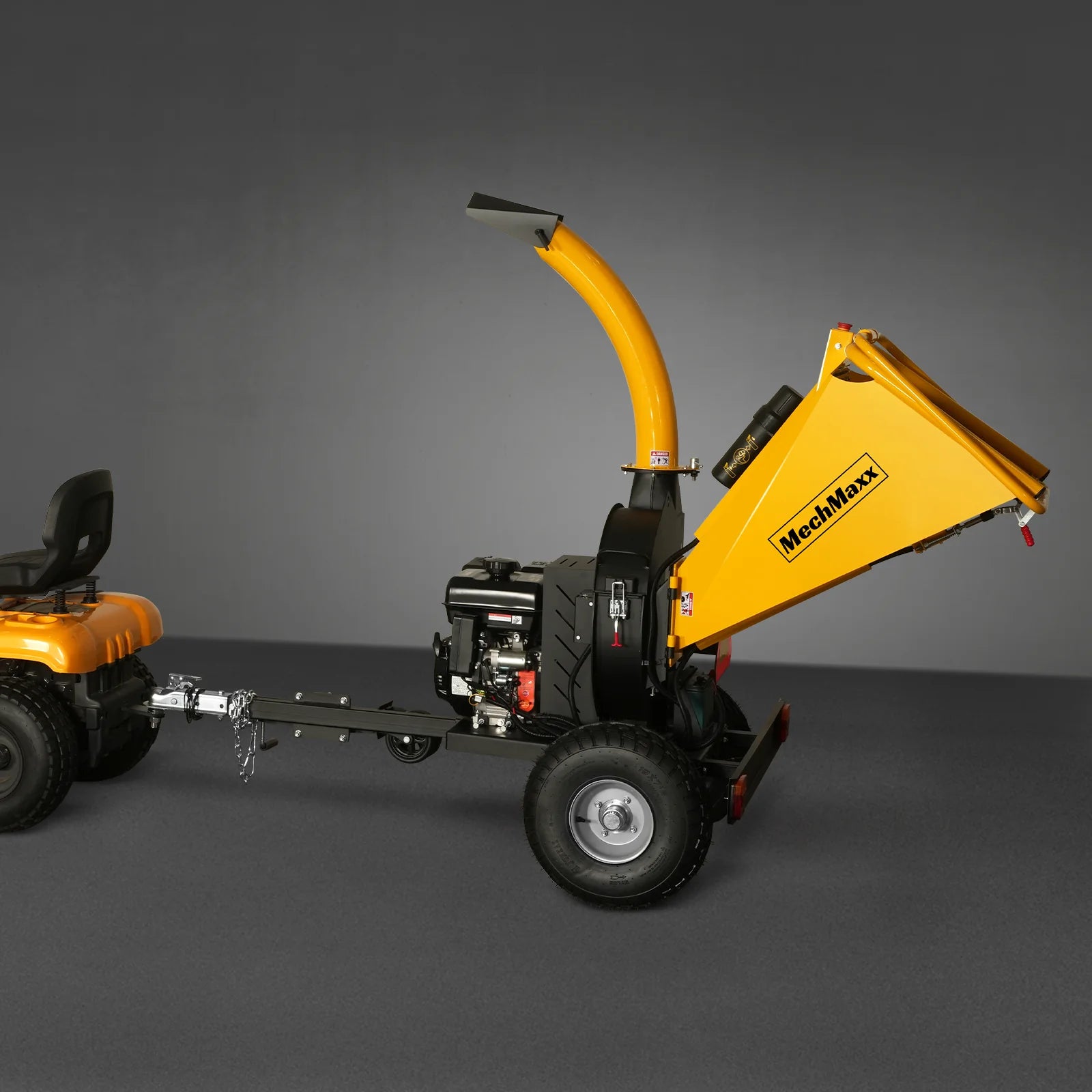

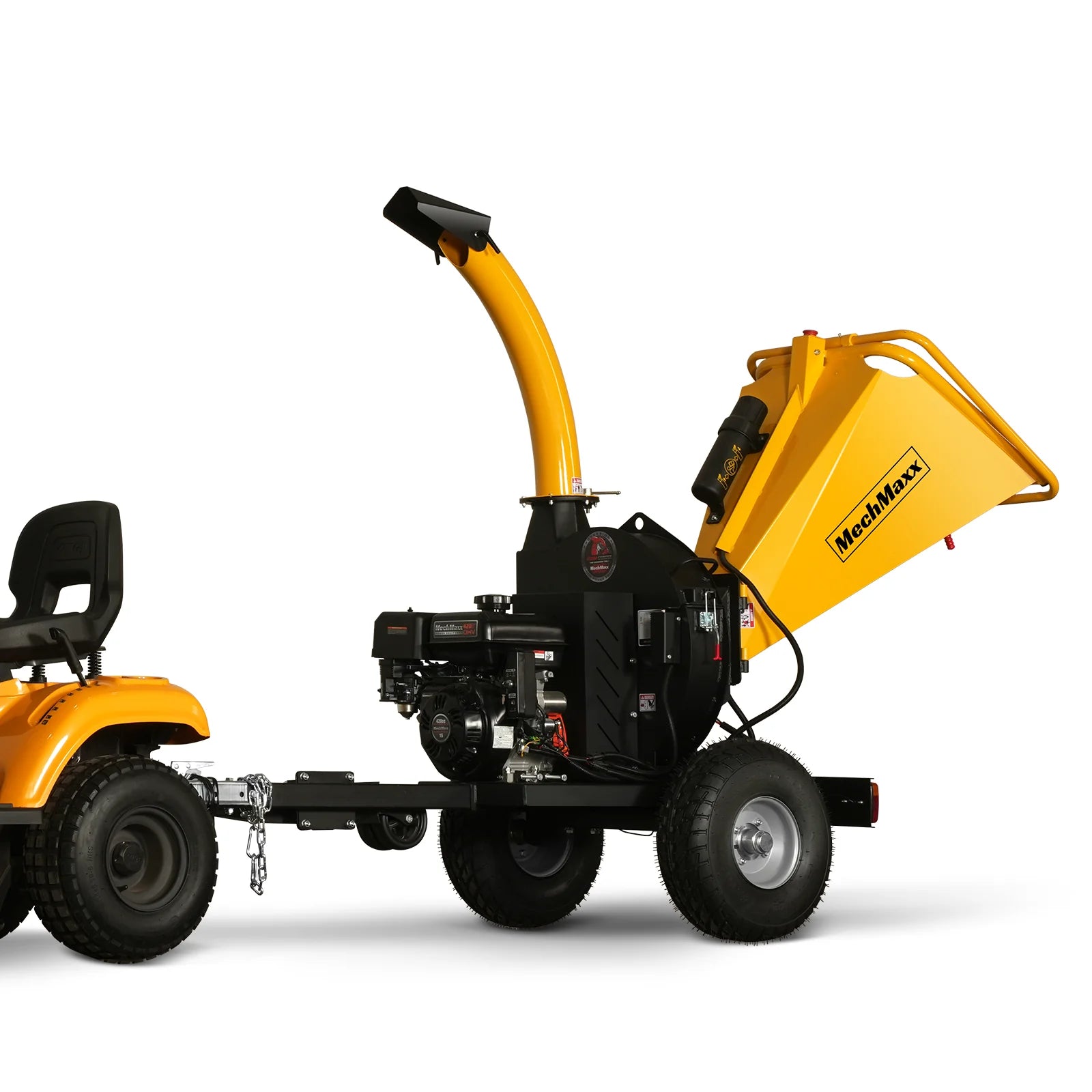

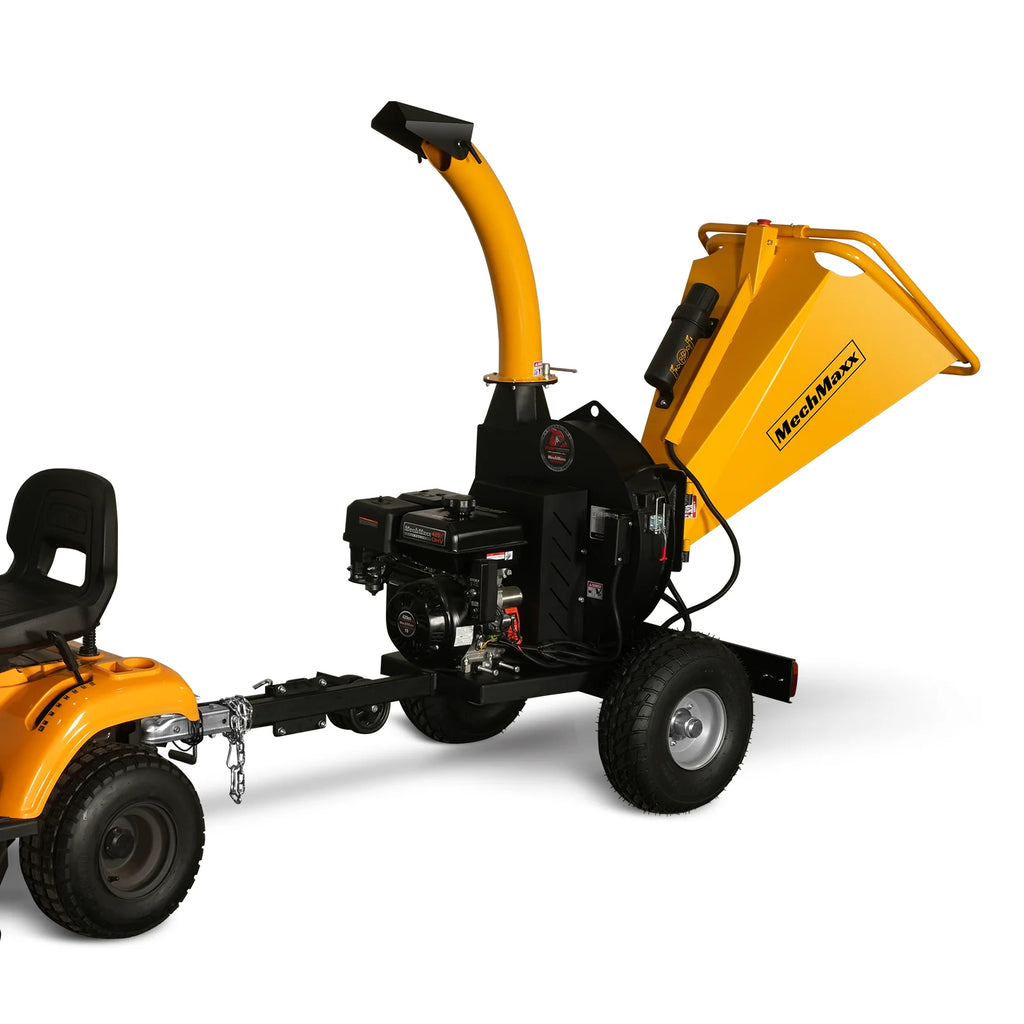

Towing |
Tow Bar With 2 in Coupler |
| Belts Material |
Kevlar |
Tire |
19 x 7.00-8 Tubeless |
| Clutch |
Centrifugal Clutch |
Wheelbase
|
41.5 in |

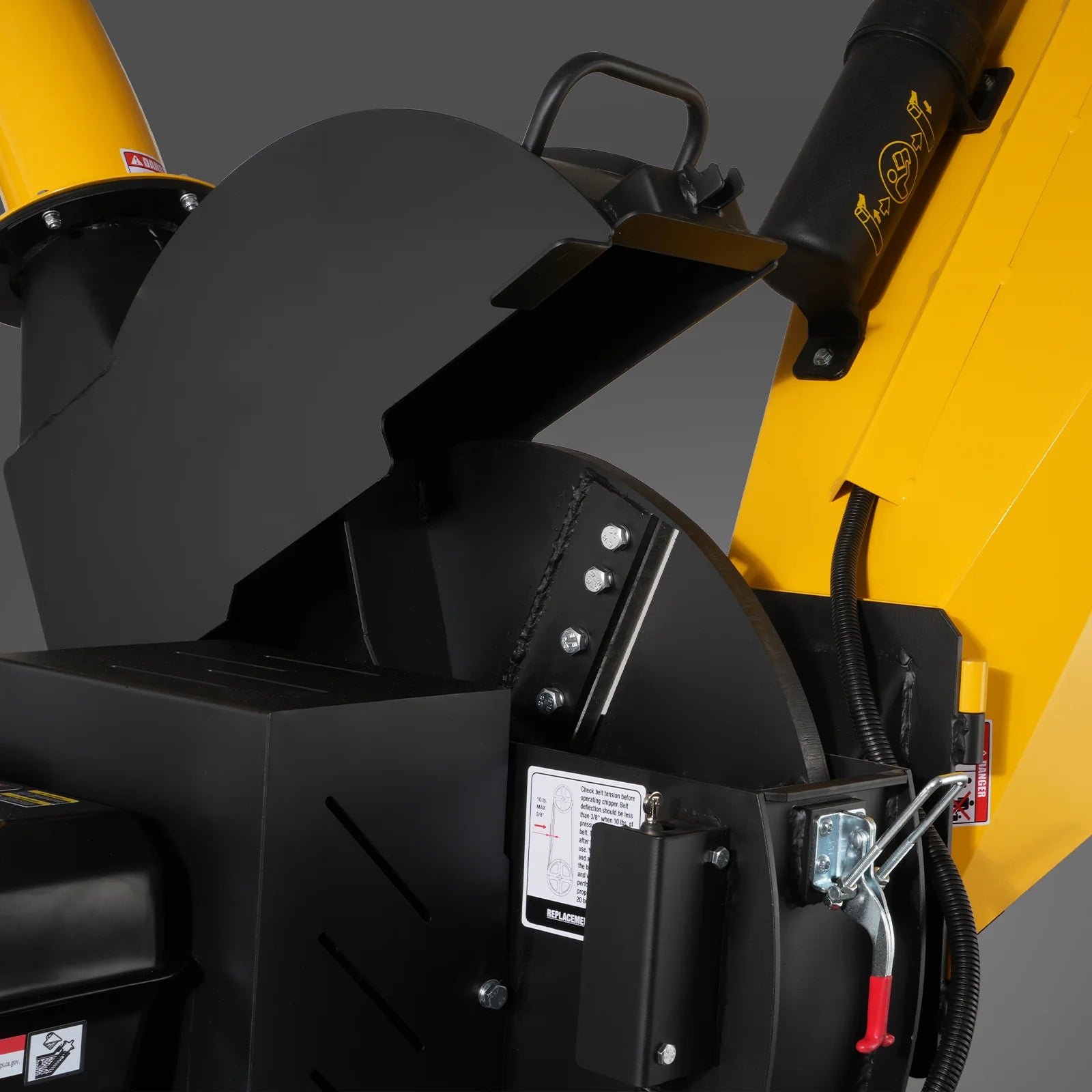

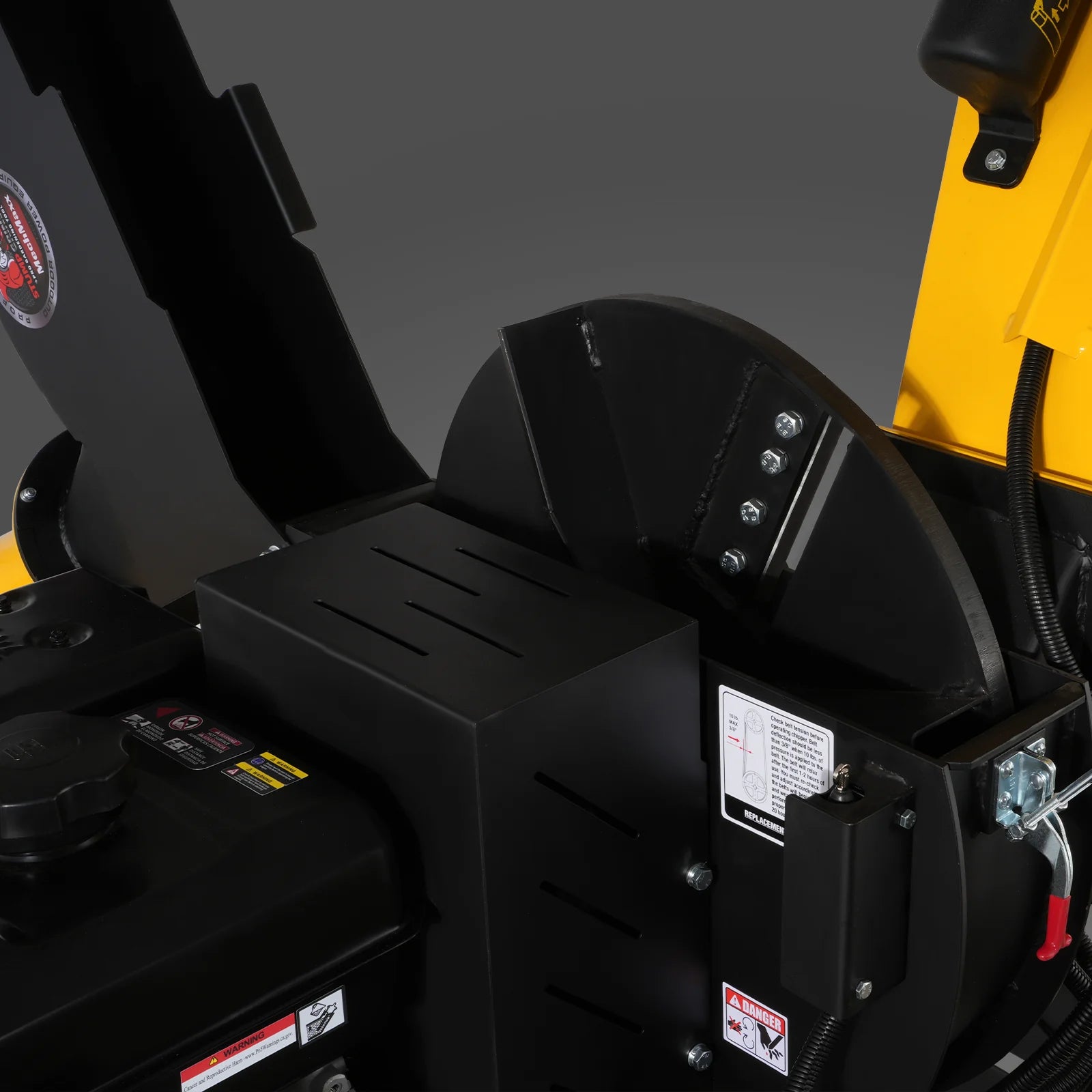

| Cutting Method |
Disc |
Package Method |
Plywood Case |
| Chipping Dia. |
5 in |
Weight (N.W./G.W.) |
547 / 610 lbs |
| Reduction Ratio |
20:1 |
Packing Size (L*W*H) |
43 x 31 x 50 in |

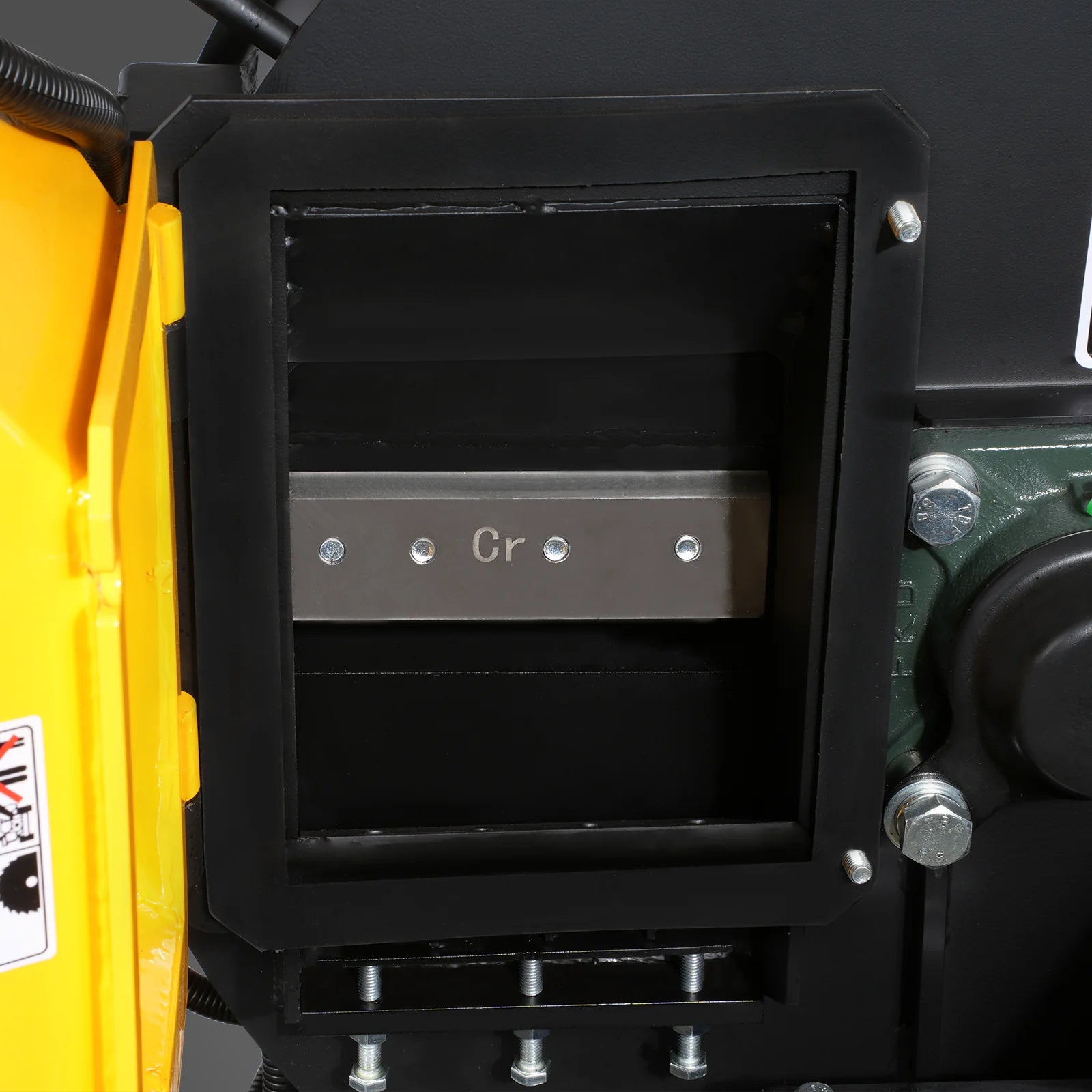

| Blades Nos. |
2 x Blade; 1 x Anvil |
Warranty |
1 Year |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
